What is a Rotary Joint / Rotary Union?

A Rotary Joint (also known as a Rotary Union or Swivel Joint) is a precision mechanical device used to transfer pressurized fluids or gases from a stationary pipeline into rotating machinery. It establishes a secure, continuous seal between static supply lines and rotating components—such as cylinders, dryers, rolls, and spindles—allowing the machinery to rotate 360° freely without fluid leakage or pressure loss.

Various rotary unions classified by media for different industries: thermal oil, cooling water, steam, air/vacuum, coolant, hydraulic oil.

Rotary unions are vital operational components across modern automation and miscellaneous industries. They are engineered to handle a diverse range of media including water, steam, thermal oil, hydraulic fluid, coolant, compressed air, and vacuum. By ensuring reliable dynamic sealing under extreme speeds, pressures, and temperatures, they safeguard production continuity and maximize equipment efficiency.

Universal Specifications & Technical Capabilities

To match the rigorous demands of global industrial setups, high-quality rotary unions are engineered within versatile technical thresholds. Performance metrics generally vary by series and customized configurations:

• Speed Capacity: From low-speed rotations (10 RPM) to high-speed CNC spindle indexing exceeding 20,000 RPM.
• Pressure Range: Capable of managing pneumatic vacuums up to high-pressure hydraulic demands reaching 350 Bar (35 MPa).
• Temperature Tolerance: Designed to withstand cryogenic cooling cycles up to extreme thermal oil heating processes at 400°C in different industries.
• Connection Standards: Available in Metric, NPT (American Standard), and G/BSP (British Standard) threads, as well as customized flange connections.
• Premium Housing & Rotor Materials: Metalsin rotary unions utilize a precision-engineered material matrix optimized for extreme industrial environments. Housings feature anodized aerospace aluminum for lightweight, high-speed spindles; ductile iron or forged steel for high-temperature steam and hot oil systems (up to 400°C); and brass, bronze, or 304/316 stainless steel for anti-corrosive water utilities. Complementing the body, the rotor (shaft) is crafted from hardened stainless steel (410/420/316L) or chrome-plated alloy steel, delivering robust wear resistance, rust protection, and structural stability under high pressures up to 350 bar.
• Advanced Balanced Mechanical Seals: Metalsin rotary unions feature advanced balanced mechanical seals that minimize friction torque and heat generation for zero-leakage performance. We utilize tailored material pairings to meet precise industrial demands: ultra-hard Silicon Carbide to Tungsten Carbide (SiC vs. WC) to resist abrasive micro-particles in high-speed CNC cutting fluids; Carbon Graphite to SiC for self-lubricating water and air utilities; and proprietary antimony-impregnated carbon to provide thermal stability against hot oil degradation. For extreme operations, cutting-edge CVD diamond-coated seals deliver robust dry-run capabilities, protecting precision spindles from catastrophic dry-friction failures.

Comprehensive Classification Matrix

1. Classification By Media (Fluid Type)

• Steam & Condensate Rotary Joints: Built for heavy-duty steam heating systems, equipped with stationary or rotary syphon pipes to ensure efficient condensate evacuation.
• Thermal Oil / Hot Oil Rotary Joints: Engineered for high-temperature heat transfer oil applications (up to 350°C) with specialized thermal expansion compensation.
• Cooling Water Rotary Unions: Corrosion-resistant unions designed for industrial cooling rolls, extruders, and continuous casting machinery.
• Machine Tool / Spindle Coolant Rotary Unions: Ultra-high-speed joints tailored for CNC through-spindle coolant (TSC) systems, supporting dry-running capabilities.
• Hydraulic Oil / Hydraulic Fluid Rotary Unions & Swivel Joints: Multi-passage, high-pressure manifolds engineered to seamlessly transfer mineral-based, synthetic, or fire-resistant hydraulic fluids to actuators on rotating structures, operating reliably under extreme pressures。
• Pneumatic, Air & Vacuum Rotary Unions: Lightweight, low-torque unions optimized for compressed air delivery and vacuum maintenance in automation.

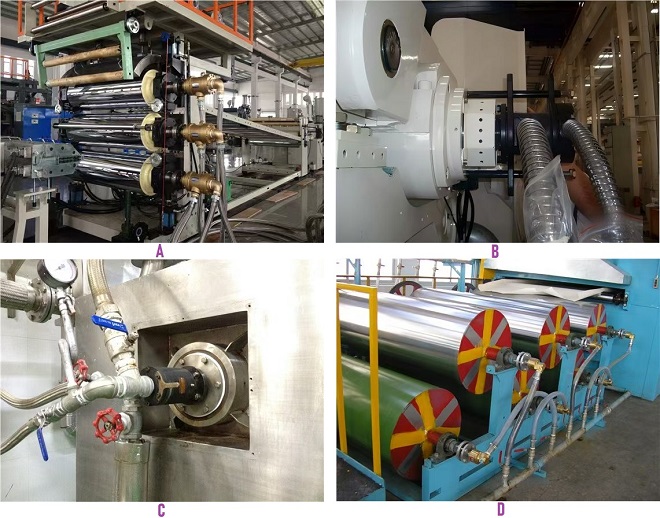

Typical applications of rotary joints (unions): A – rubber calender machinery; B – corrugating machinery / single facers; C – industrial mixers & agitators in food processing; D – cooling rolls in textile dyeing & printing industry.

2. Classification By Industry Application

• Paper, Corrugating & Packaging: Steam joints for paper mill dryer drums and quick-change single facer corrugating rolls.
• Heavy Construction & Tunneling: Central swivel joints for crawler excavators, mobile cranes, and Tunnel Boring Machines (TBM).
• Machine Tools & Automation: High-speed coolant and air unions for machining centers, rotary tables, and robotic arms.
• Semiconductor & Precision Equipment: Ultra-pure fluid and high-vacuum rotating unions for wafer processing and deposition chambers.
• Rubber, Plastics & Chemical Processing: Thermal oil and water joints for mixing mills, plastic extruders, and chemical reactor jackets.
• Steel, Tire & Heavy Industry: Heavy-duty water joints for continuous casting machines (CCM) and steam joints for tire curing presses.
• Food & Feed Processing: Stainless steel sanitary rotary joints compliant with food-grade washdown environments.
• Renewable Energy: Specialized hydraulic pitch control slip rings and unions for wind turbines and solar photovoltaic manufacturing equipment.
