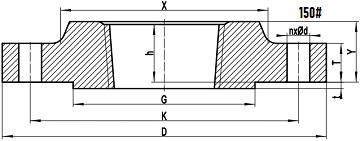

NPS | D | G | X | K |
---|---|---|---|---|
1/2 | 90 | 34.9 | 30 | 60.3 |
3/4 | 100 | 42.9 | 38 | 69.9 |
1 | 110 | 50.8 | 49 | 79.4 |
1-1/4 | 115 | 63.5 | 59 | 88.9 |
1-1/2 | 125 | 73.0 | 65 | 98.4 |
2 | 150 | 92.1 | 78 | 120.7 |
2-1/2 | 180 | 104.8 | 90 | 139.7 |
3 | 190 | 127.0 | 108 | 152.4 |
3-1/2 | 215 | 139.7 | 122 | 177.8 |
4 | 230 | 157.2 | 135 | 190.5 |
5 | 255 | 185.7 | 164 | 215.9 |
6 | 280 | 215.9 | 192 | 241.3 |
8 | 345 | 269.9 | 246 | 298.5 |
10 | 405 | 323.8 | 305 | 362.0 |
12 | 485 | 381.0 | 365 | 431.8 |
14 | 535 | 412.8 | 400 | 476.3 |
16 | 595 | 469.9 | 457 | 539.8 |
18 | 635 | 533.4 | 505 | 577.9 |
20 | 700 | 584.2 | 559 | 635.0 |
22 | 750 | 641.4 | 610 | 692.2 |
24 | 815 | 692.2 | 663 | 749.3 |
NPS | n | d | l | L |
---|---|---|---|---|
1/2 | 4 | 5/8 | 1/2 | 55 |
3/4 | 4 | 5/8 | 1/2 | 65 |
1 | 4 | 5/8 | 1/2 | 65 |
1-1/4 | 4 | 5/8 | 1/2 | 70 |
1-1/2 | 4 | 5/8 | 1/2 | 70 |
2 | 4 | 3/4 | 5/8 | 85 |
2-1/2 | 4 | 3/4 | 5/8 | 90 |
3 | 4 | 3/4 | 5/8 | 90 |
3-1/2 | 8 | 3/4 | 5/8 | 90 |
4 | 8 | 3/4 | 5/8 | 90 |
5 | 8 | 7/8 | 3/4 | 95 |
6 | 8 | 7/8 | 3/4 | 100 |
8 | 8 | 7/8 | 3/4 | 110 |
10 | 12 | 1 | 7/8 | 115 |
12 | 12 | 1 | 7/8 | 120 |
14 | 12 | 1-1/8 | 1 | 135 |
16 | 16 | 1-1/8 | 1 | 135 |
18 | 16 | 1-1/4 | 1-1/8 | 145 |
20 | 20 | 1-1/4 | 1-1/8 | 160 |
22 | 20 | 1-3/8 | 1-1/4 | 170 |
24 | 20 | 1-3/8 | 1-1/4 | 170 |
NPS | h | Y | T | Mass |
---|---|---|---|---|
1/2 | 16 | 14 | 9.6 | 0.39 |
3/4 | 16 | 14 | 11.2 | 0.56 |
1 | 17 | 16 | 12.7 | 0.78 |
1-1/4 | 21 | 19 | 14.3 | 1.03 |
1-1/2 | 22 | 21 | 15.9 | 1.32 |
2 | 25 | 24 | 17.5 | 2.06 |
2-1/2 | 29 | 27 | 20.7 | 3.28 |
3 | 30 | 29 | 22.3 | 3.85 |
3-1/2 | 32 | 30 | 22.3 | 4.81 |
4 | 33 | 32 | 22.3 | 5.30 |
5 | 36 | 35 | 22.3 | 6.07 |
6 | 40 | 38 | 23.9 | 7.45 |
8 | 44 | 43 | 27.0 | 12.1 |
10 | 49 | 48 | 28.6 | 16.5 |
12 | 56 | 54 | 30.2 | 26.2 |
14 | 57 | 56 | 33.4 | 34.6 |
16 | 64 | 62 | 35.0 | 44.8 |
18 | 68 | 67 | 38.1 | 48.9 |
20 | 73 | 71 | 41.3 | 61.9 |
22 | … | 78 | 44.5 | … |
24 | 83 | 81 | 46.1 | 86.9 |
ASME B16.5 Threaded Flange, Classes | |||
---|---|---|---|
150# | 300# | 400# | 600# |
900# | 1500# | 2500# | - |
