NPS | D | G | B | X |
---|---|---|---|---|
1/2" | 95 | 34.9 | 22.2 | 38 |
3/4" | 115 | 42.9 | 27.7 | 48 |
1" | 125 | 50.8 | 34.5 | 54 |
1-1/4" | 135 | 63.5 | 43.2 | 64 |
1-1/2" | 155 | 73.0 | 49.5 | 70 |
2" | 165 | 92.1 | 61.9 | 84 |
2-1/2" | 190 | 104.8 | 74.6 | 100 |
3" | 210 | 127.0 | 90.7 | 117 |
3-1/2" | 230 | 139.7 | 103.4 | 133 |
4" | 255 | 157.2 | 116.1 | 146 |
5" | 280 | 185.7 | 143.8 | 178 |
6" | 320 | 215.9 | 170.7 | 206 |
8" | 380 | 269.9 | 221.5 | 260 |
10" | 445 | 323.8 | 276.2 | 321 |
12" | 520 | 381.0 | 327.0 | 375 |
14" | 585 | 412.8 | 359.2 | 425 |
16" | 650 | 469.9 | 410.5 | 483 |
18" | 710 | 533.4 | 461.8 | 533 |
20" | 775 | 584.2 | 513.1 | 587 |
22" | 840 | 641.4 | 564.4 | 640 |
24" | 915 | 692.2 | 616.0 | 702 |
NPS | K | n | d | l |
---|---|---|---|---|
1/2" | 66.7 | 4 | 5/8 | 1/2 |
3/4" | 82.6 | 4 | 3/4 | 5/8 |
1" | 88.9 | 4 | 3/4 | 5/8 |
1-1/4" | 98.4 | 4 | 3/4 | 5/8 |
1-1/2" | 114.3 | 4 | 7/8 | 3/4 |
2" | 127.0 | 8 | 3/4 | 5/8 |
2-1/2" | 149.2 | 8 | 7/8 | 3/4 |
3" | 168.3 | 8 | 7/8 | 3/4 |
3-1/2" | 184.2 | 8 | 7/8 | 3/4 |
4" | 200.0 | 8 | 7/8 | 3/4 |
5" | 235.0 | 8 | 7/8 | 3/4 |
6" | 269.9 | 12 | 7/8 | 3/4 |
8" | 330.2 | 12 | 1 | 7/8 |
10" | 387.4 | 16 | 1-1/8 | 1 |
12" | 450.8 | 16 | 1-1/4 | 1-1/8 |
14" | 514.4 | 20 | 1-1/4 | 1-1/8 |
16" | 571.5 | 20 | 1-3/8 | 1-1/4 |
18" | 628.6 | 24 | 1-3/8 | 1-1/4 |
20" | 685.8 | 24 | 1-3/8 | 1-1/4 |
22" | 743.0 | 24 | 1-5/8 | 1-1/2 |
24" | 812.8 | 24 | 1-5/8 | 1-1/2 |
NPS | Y | T | L | Mass |
---|---|---|---|---|
1/2" | 21 | 12.7 | 65 | 0.64 |
3/4" | 24 | 14.3 | 75 | 1.12 |
1" | 25 | 15.9 | 75 | 1.36 |
1-1/4" | 25 | 17.5 | 85 | 1.68 |
1-1/2" | 29 | 19.1 | 90 | 2.49 |
2" | 32 | 22.3 | 90 | 2.87 |
2-1/2" | 37 | 25.4 | 100 | 4.32 |
3" | 41 | 28.6 | 110 | 5.85 |
3-1/2" | 43 | 30.2 | 110 | 7.34 |
4" | 46 | 31.8 | 115 | 9.61 |
5" | 49 | 35.0 | 120 | 12.3 |
6" | 51 | 36.6 | 120 | 15.6 |
8" | 60 | 41.3 | 140 | 24.2 |
10" | 65 | 47.7 | 160 | 34.1 |
12" | 71 | 50.8 | 170 | 49.8 |
14" | 75 | 54.0 | 180 | 69.9 |
16" | 81 | 57.2 | 190 | 88.1 |
18" | 87 | 60.4 | 195 | 109 |
20" | 94 | 63.5 | 205 | 134 |
22" | 100 | 66.7 | 230 | 170.85 |
24" | 105 | 69.9 | 230 | 201 |

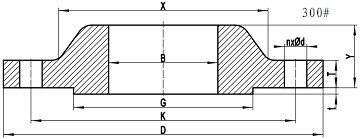

ASME B16.5 SO Flanges: Dimensions & Weights | ||
---|---|---|
Class150 | Class300 | Class400 |
Class600 | Class900 | Class1500 |
