ASTM A192 Boiler Tubes Applied to ASME BPVC

August 7, 2020

Applicability & Maximum Temperature

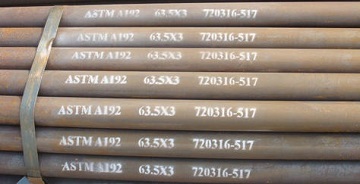

ASTM A192 carbon steel seamless boiler tubes, Φ63.5 mm x 3 mm (w.t) x 6700 mm. These tubes are furnished to a heat recovery boiler in a sulphuric-acid-production plant, Chile.

ASTM A192/ ASME SA-192 carbon steel seamless tubes are widely used for the construction of boilers and superheaters in cane sugar industry, fossile thermal plant, chemical and petrochemical industry. They are also called as “boiler tubes” or “superheater tubes”. The boiler tubes made of ASTM A192 steel can be applied to services in accordance with ASME Boiler & Pressure Vessel Code (BPVC) Section I, Section VIII-1, Section XII and Section IV. The maximum temperature limits are 538°C, 538°C, and 343°C for Section I, VIII-1, and XII, respectively. The UNS designation of ASME SA-192 (ASTM A192) steel is K01201 with the P-number of 1.

Maximum Allowable Stresses

Temp.	S
40	92.4
65	92.4
100	92.4
125	92.4
150	92.4
200	92.4
250	92.4
300	91.9
325	90.7
350	87.8
375	84.3
400	73.3
425	63.9
450	56.2
475	44.5
500	31.9
525	21.8
550	12.7

*S & Temp.: maximum allowable stress, MPa, for metal temperature, °C, not exceeding.
*Extracted from ASME BPVC Section II Part D Table 1A; for ASME SA-192 (ASTM A192) tubes applied to Section I, VIII-1, XII.

Temp.	S
40	64.8
65	64.8
100	64.8
125	64.8
150	64.8
175	64.8
200	64.8
225	64.8
250	64.8
275	64.8

*S & Temp.: maximum allowable stress, MPa, for metal temperature, °C, not exceeding.
*Extracted from ASME BPVC Section II Part D Table 6A; for ASME SA-192 (ASTM A192) tubes applied to Section IV.
