Ductile Iron Wafer Butterfly Valve | Universal, Pinned Disc

The ductile iron universal wafer butterfly valve with pinned disc, carbon steel handle operated with position indicator, stainless steel 304 disc, synthetic rubber seated.

  • Description

Technical Drawing & Design Features

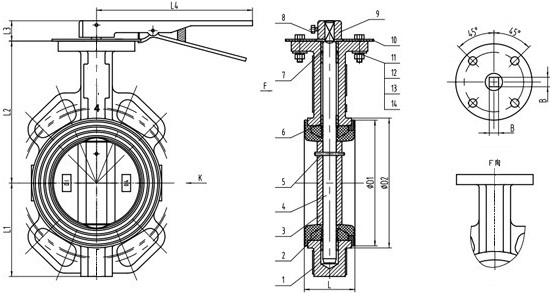

Drawing of universal wafer BFV

Technical G.A drawing of the universal wafer type butterfly valve.

The universal wafer butterfly valves we supply have the following design features: (1) Ductile iron body: ASTM A536 Grade 60-40-18 and Grade 65-45-12; GGG 40 and GGG 50; QT 400 and QT 450; EN-JS 1050. (2) Wafer body: The flangeless body, that is a flat body with minimum face-to-face dimension, is sandwiched between two pipe flanges. (3) Universal: the valve can be installed between pipe flanges manufactured in conformance with a series of international standards covering BS 4504 PN10/PN16, BS 10 Table D/Table E, AS 2129 Table D/Table E, DIN 2501 PN10/PN16, JIS B2220 5K/10K, ASME B16.1 Class 125 & ASME B16.42 Class 150, ISO 7005-2 PN10/PN16, ASME B16.5 Class 150. The drilling pattern illustrated in the drawing indicates that its ends are adapted for the through-bolt flange connection of various dimensions. In fact, this is why it is called “universal“. (4) Applicable design code: ISO 5752, BS 5155, EN 593, DIN 3202, MSS SP 67, API 609, JIS B2032, JB/T 8527, GB/T 12238. (5) Pinned disc: The disc is attached to shaft by using a taper pin. (6) The rubber seat is furnished with extended seating surfaces to match different flanges. (7) Malleable iron handle with position indicator. (8) ISO 5211 connection pad.

Material Selection & Dimensions

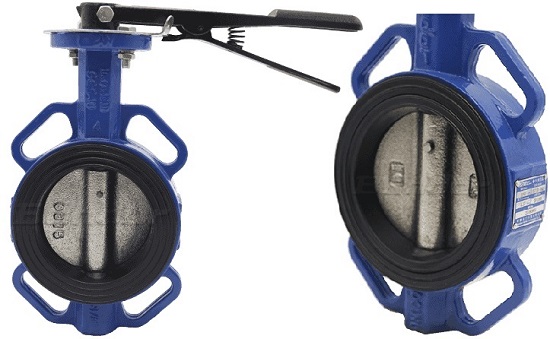

Ductile iron wafer BFV

The universal wafer type butterfly valve with pinned disc, ductile iron body, SS 304 disc, lever operated, adapted for various flange connections, blue epoxy coated.

ItemNameMaterial
1BodyDuctile Iron
2SeatEPDM, NBR
3DiscD.I. + Ni Plated
SS 304, SS 316
4ShaftSS 304, SS 316
SS 416, SS 431
5Taper PinSS 416
6BushingPTFE
7O-RingEPDM, NBR
8Handle ScrewSS 304
9Handle LeverMalleable Iron
10Top PlateC.S. + Galv.
SS 304, SS 316
11Nut2H + Galv.
12BoltB7 + Galv.
13Flat WasherC.S. + Galv.
14Spring WasherC.S. + Galv.
*The parts shall be in accordance with the G.A. drawing presented above.

SizeL
mm
D1
mm
D2
mm
L4
mm
2"488692.3240
2-1/2"52101107240
3"53116122240
4"58148153270
5"62174179320
6"62204208.4320
8"65252262.3380
*Dimensions L, D1, D2, L4.

SizeL1
mm
L2
mm
L3
mm
2"7512924
2-1/2"8213624
3"9915324
4"11016724
5"12519324
6"14520924
8"17025130
*Dimensions L1, L2, L3.
