The Heat-Resistant Chromium-Molybdenum Alloy Steels

September 13, 2020

Chemical Composition & Applications

The heat resistant chromium-molybdenum alloy steels refer to a series of ferritic alloy steels that feature deliberate addition of chromium and molybdenum alloying elements. It usually contains 0.5% to 9% Cr and 0.5% to 1.0% Mo, which in combination impart improved creep strength and corrosion resistance at elevated temperatures to the alloy steels. This is the reason why it is called “heat resistant”. The Cr-Mo alloy steels are widely used in oil refineries, chemical industries, and fossil-fired power plants for piping, heat exchangers, superheater tubes, valves, bolting, gas turbine parts, steam turbine rotors and pressure vessels.

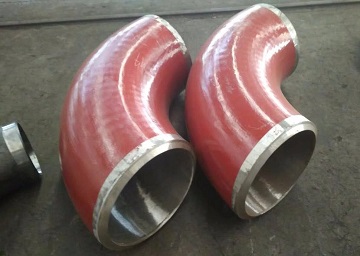

ASTM A234 Gr. WP22 elbows

ASME B16.9 90° 20″ SCH80 L/R elbows, made from a typical Cr-Mo alloy steel ASTM A234 Gr. WP22 (2.25Cr-1Mo), supplied to a chemical processing plant in France.

Except for the majority iron (Fe) content, the Cr-Mo heat resistant steels are generally composed of carbon (C), manganese (Mn), phosphorus (P), sulfur (S), silicon (Si), chromium (Cr), molybdenum (Mo), niobium (Nb), vanadium (V), boron (B), and tungsten (W), etc. The effects of each alloying element on the mechanical properties are discussed below:

    • Chromium in small amounts (~0.5%) is a carbide former and stabilizer. In larger amounts (up to 9% or more), it increases the resistance of steels to corrosion. Chromium also influences hardenability. By itself, chromium gives some enhancement of creep strength, although increasing the chromium content in lower-carbon grades does not increase resistance to deformation at elevated temperatures. When added to molybdenum steel, chromium generally leads to some reduction in creep strength. Chromium is most effective in strengthening the chromium-molybdenum steels when it is used in amounts of 1% to 2.5%.
    • Molybdenum is an essential alloying element in ferritic steels where good creep resistance above 450°C [840°F] is  required. Even in small amounts (0.1 to 0.5%), molybdenum increases the resistance of these steels to deformation at elevated temperatures. Much greater creep strength can be obtained by increasing the molybdenum level to about 1% but  at the expense of greatly reduced rupture ductility. Additions of chromium can improve rupture ductility.
    • The carbon content is usually limited to 0.15% and it increases both the strength and hardenability of steel at room temperature but decreases the weldability and impact toughness. Carbon increases short-term tensile strength but does not add appreciably to creep resistance at temperatures above 540°C [1000°F] because carbides eventually become spheroidized at such temperatures.
    • Niobium and vanadium are added to improve elevated-strength properties. Vanadium is also added to the Cr-Mo alloy steels to provide additional resistance to tempering and to retard the growth of carbides at service temperatures. Niobium is sometimes added to these steels to increase their strength through the formation of carbides. Niobium and vanadium improve resistance to hydrogen attack, but may promote hot (reheat) cracking.
    • Boron is added to increase hardenability. Boron can cause hot shortness and can impair toughness. Tungsten behaves like molybdenum and has been proposed for replacing molybdenum in nuclear applications.

Classifications & Product Forms

The three general types of heat resistant (creep resistant) Cr-Mo alloy steels: common Cr-Mo steels, Cr-Mo-V steels, and modified Cr-Mo steels. Common Cr-Mo steels are used primarily for tube, pipe, and pressure vessels, where the allowable stresses may permit creep deformation up to about 5% over the life of the component. The Cr-Mo-V steels provide higher creep strengths and are used for high-temperature bolts, compressor wheels, or steam turbine rotors, where allowable stresses may require deformations less than 1% over the life of the component. The modified Cr-Mo steels contain various microalloying elements such as vanadium, niobium, titanium, and boron. As a result, the modified Cr-Mo steels can be used at higher temperatures, with improved strength, hardenability and better resistance to hydrogen attack.

There are several prevalent types of heat resistant Cr-Mo steels that are classified on the basis of nominal chemical composition: 0.5Cr-0.5Mo, 1Cr-0.5Mo, 1.25Cr-0.5Mo, 2.25Cr-1Mo, 3Cr-1Mo, 5Cr-0.5Mo, 9Cr-1Mo, 9Cr-1Mo-V. These heat resistant Cr-Mo steels may be furnished in a variety of product forms covering castings, forgings, seamless & welded pipes, seamless & welded tubes, seamless & welded fittings, plates, and bars, etc.

Heat Treatment & Microstructure

The chromium-molybdenum steels are generally supplied in the normalized and tempered, quenched and tempered, or annealed condition. As a result of the cooling rates employed in these treatments, the microstructures of chromium-molybdenum steels may vary from ferrite-pearlite aggregates to ferrite-bainite aggregates. Bainite microstructures have better creep resistance under high-stress, short-time conditions but degrade more rapidly at high temperatures than pearlitic structures. As a result, ferrite-pearlite material has better intermediate-term, low-stress creep resistance. Because both microstructures will eventually spheroidize, it is expected that over long service lives the two microstructures will converge to similar creep strengths.

Strenthening Mechanisms

The most important characteristic of the heat-resistant Cr-Mo steel is its creep strength at elevated temperatures. The creep strength is derived mainly from two sources: solid-solution strengthening of the matrix ferrite by carbon, molybdenum, and chromium; and precipitation hardening by carbides. The stability of the carbides increases in the following order of alloying elements: chromium, molybdenum, vanadium, and niobium. Fine and closely dispersed precipitates of NbC and VC are thus desirable, followed by the other carbides. Creep strength generally, but not always, increases with higher amounts of molybdenum and chromium.
