PTFE Lined Lug Type Butterfly Valves

A PTFE lined lug type butterfly valve, bare stem, BS 5155 PN16, integrally cast ductile iron body, PTFE+EPDM composite seat, PTFE encapsulated disc.

  • Description

Characteristics of PTFE Linings

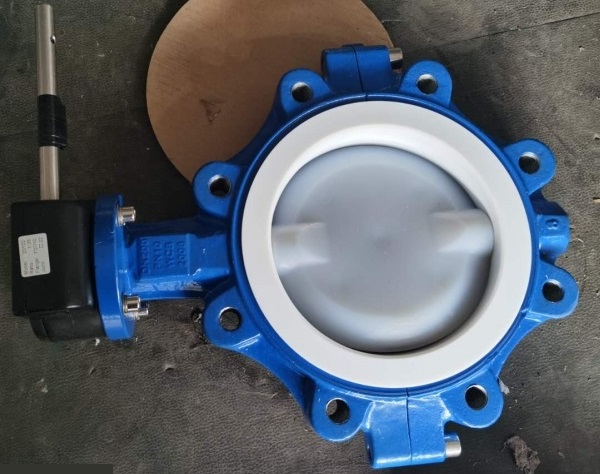

Split body PTFE lined BFV

A lug type butterfly valve, ductile iron body and worm gear operated, PTFE lined seat & PTFE encapsulated disc, spilt body (two-piece).

PTFE (polytetrafluoroethylene) is a linear crystalline polymer with a melting point of 327°C. The PTFE linings used for butterfly valves have excellent corrosion resistance to most chemicals covering most organic and inorganic acids and alkalis. Only alkali metals in molten state may attack the polymer. PTFE does not absorb significant quantities of water and has low permeability to gases and moisture vapor. It is a tough polymer with good insulating properties. It is also known for its low coefficient of friction and self-lubricating tendency, with values in the range of 0.02 to 0.10. Thus, PTFE linings can significantly reduce the operating torque of the valve. PTFE, like other fluoropolymers, has excellent heat resistance and can withstand temperatures up to 260°C. Because of the high thermal stability, the mechanical and electrical properties of PTFE remain stable for long times at temperatures up to 250°C. In addition to its high temperature resistance, PTFE has very good toughness and flexibility at low temperatures down to -195°C. PTFE also has good strength and ductility, with tensile strength over 22.5 MPa and elongation rate over 250%.

G.A. Drawing & Design Features

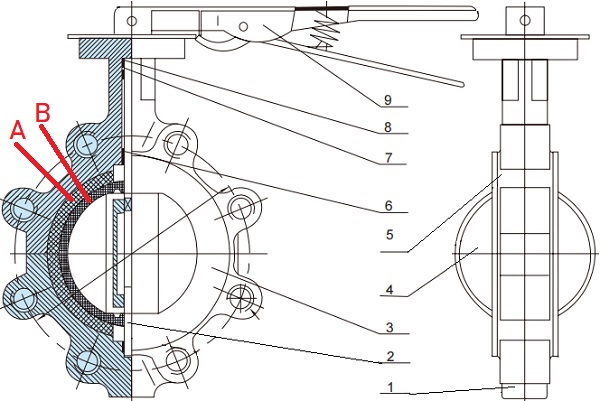

Drawing of PTFE lined BFV

The technical G.A. drawing for a fully PTFE lined lug-type butterfly valve, integrally cast ductile iron body, handle operated.

The fully PTFE lined lug-type butterfly valve has the following design features: (1) Composite seat made of PTFE and EPDM. As illustrated the G.A. drawing, the outer layer A is the EPDM rubber seat that provides sufficient elasticity; the inner layer B is the PTFE lining that provides superior corrosion resistance and low friction. (2) PTFE encapsulated disc ensures that all wetted surfaces in contact with the fluid are PTFE. (3) The lug-type valve body can be either integrally cast or split body with upper and lower two halves. (4) ISO 5211 mounting flange for multiple operators: handle lever, electric actuator, pneumatic actuator, electric & hydraulic actuator, worm gear.

Material Selection & Structural Dimensions

ItemMain PartMaterial
1Lower BodyDuctile Iron
2ShaftSS 304, SS 316
SS 410, SS 431
Al-Bronze
3SeatEPDM+PTFE
4DiscD.I.+PTFE
5Upper BodyDuctile Iron
6BushingPTFE
7O-ringEPDM, Viton
8BushingPTFE
9HandleMalleable Iron
*Materials for main parts of the fully PTFE lined lug butterfly valve.

NPSH1
mm
H2
mm
C
mm
L
mm
1-1/2"681102433
2"801613042
2-1/2"891753045
3"951813045
4"1142003051
5"1272133055
6"1392263055
8"1752603460
10"2032923467
12"2423373476
14"2673684076
16"31640052102
18"33442252114
20"37048064127
22"43353370151
24"46856270151
26"48454070172
28"53062695165
32"67560295190
40"810724130216
*H1: bottom to center length; H2: center to top flange length; C: handle height; L: face-to-face dimension.

Design Standards, Pressure Ratings & Working Temperatures

Design standards: MSS SP 67, API 609, BS 5155, EN 593, DIN 3202. Design pressure ratings: Class 125, Class 150, PN 10, PN 16. Working temperature range: -10°C to 250°C.
