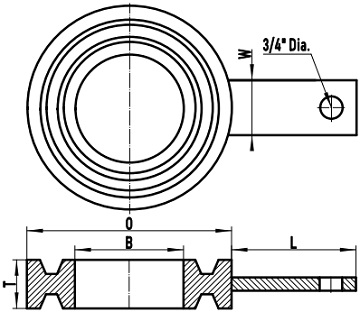

The female ring-joint groove on the open end of the paddle spacer shall be cut in accordance with ASME B16.5. A single through indicator hole shall be drilled near the end of the handle. Usually, the hole diameter is 3/4″. W: handle width; T: thickness of ring spacer; B: bore diameter; L: length of handle, to be determined by the user; O: outside diameter.
NPS | O | T | W | B | Weight |
---|---|---|---|---|---|
1 | 64 | 19.1 | 51 | 34 | 0.10 |
1-1/4 | 73 | 19.1 | 51 | 42 | 0.19 |
1-1/2 | 83 | 19.1 | 57 | 48 | 0.25 |
2 | 102 | 19.1 | 57 | 61 | 0.36 |
2-1/2 | 121 | 22.4 | 57 | 73 | 0.38 |
3 | 133 | 22.4 | 57 | 89 | 0.55 |
3-1/2 | 154 | 22.4 | 64 | 102 | 1.06 |
4 | 172 | 22.4 | 64 | 114 | 1.22 |
5 | 194 | 25.4 | 70 | 141 | 1.35 |
6 | 219 | 25.4 | 83 | 168 | 1.91 |
8 | 273 | 28.4 | 95 | 219 | 2.68 |
10 | 330 | 31.8 | 102 | 273 | 4.35 |
12 | 406 | 35.1 | 121 | 324 | 7.71 |
14 | 426 | 35.1 | 127 | 356 | 9.41 |
16 | 483 | 38.1 | 127 | 406 | 14.11 |
18 | 546 | 41.1 | 127 | 457 | 15.25 |
20 | 597 | 41.1 | 127 | 508 | 19.76 |
24 | 711 | 47.8 | 152 | 610 | 28.59 |
NPS | O | T | W | B | Weight |
---|---|---|---|---|---|
1/2 | 51 | 15.7 | 38 | 21 | 0.12 |
3/4 | 64 | 19.1 | 45 | 27 | 0.18 |
1 | 70 | 19.1 | 51 | 34 | 0.21 |
1-1/4 | 79 | 22.4 | 51 | 42 | 0.23 |
1-1/2 | 90 | 22.4 | 57 | 48 | 0.31 |
2 | 108 | 25.4 | 57 | 61 | 0.57 |
2-1/2 | 127 | 28.4 | 57 | 73 | 0.76 |
3 | 146 | 28.4 | 57 | 89 | 0.98 |
3-1/2 | 159 | 28.4 | 64 | 102 | 1.43 |
4 | 175 | 31.8 | 64 | 114 | 1.69 |
5 | 210 | 35.1 | 70 | 141 | 2.75 |
6 | 241 | 35.1 | 83 | 168 | 3.54 |
8 | 302 | 41.1 | 95 | 219 | 6.60 |
10 | 356 | 44.5 | 102 | 273 | 9.00 |
12 | 413 | 50.8 | 121 | 324 | 12.96 |
14 | 457 | 53.8 | 127 | 356 | 21.31 |
16 | 508 | 57.2 | 127 | 406 | 29.19 |
18 | 575 | 60.5 | 127 | 457 | 37.11 |
20 | 635 | 69.9 | 127 | 508 | 45.93 |
24 | 749 | 79.2 | 152 | 610 | 70.36 |
NPS | O | T | W | B | Weight |
---|---|---|---|---|---|
1/2 | 51 | 19.1 | 38 | 21 | 0.17 |
3/4 | 64 | 22.4 | 45 | 27 | 0.25 |
1 | 70 | 22.4 | 51 | 34 | 0.32 |
1-1/4 | 79 | 22.4 | 51 | 42 | 0.52 |
1-1/2 | 90 | 22.4 | 57 | 48 | 0.70 |
2 | 108 | 28.4 | 57 | 61 | 0.94 |
2-1/2 | 127 | 31.8 | 57 | 73 | 1.43 |
3 | 146 | 31.8 | 57 | 89 | 1.86 |
3-1/2 | 159 | 35.1 | 64 | 102 | 2.38 |
4 | 175 | 35.1 | 64 | 114 | 3.39 |
5 | 210 | 38.1 | 70 | 141 | 5.73 |
6 | 241 | 44.5 | 83 | 168 | 7.47 |
8 | 302 | 50.8 | 95 | 219 | 11.85 |
10 | 356 | 57.2 | 102 | 273 | 21.20 |
12 | 413 | 63.5 | 121 | 324 | 30.04 |
14 | 457 | 66.5 | 127 | 356 | 35.92 |
16 | 508 | 73.2 | 127 | 406 | 53.35 |
18 | 575 | 79.2 | 127 | 457 | 62.07 |
20 | 635 | 88.9 | 127 | 508 | 88.98 |
24 | 749 | 104.6 | 152 | 610 | 125.97 |
NPS | O | T | W | B | Weight |
---|---|---|---|---|---|
1/2 | 61 | 22.4 | 38 | 21 | 0.21 |
3/4 | 67 | 22.4 | 45 | 27 | 0.28 |
1 | 71 | 22.4 | 51 | 34 | 0.36 |
1-1/4 | 81 | 25.4 | 51 | 42 | 0.59 |
1-1/2 | 92 | 25.4 | 64 | 48 | 0.74 |
2 | 124 | 31.8 | 51 | 61 | 1.71 |
2-1/2 | 137 | 35.1 | 67 | 73 | 2.20 |
3 | 155 | 35.1 | 67 | 89 | 2.67 |
4 | 181 | 41.1 | 73 | 114 | 4.48 |
5 | 216 | 44.5 | 73 | 141 | 6.94 |
6 | 241 | 47.8 | 73 | 168 | 10.15 |
8 | 308 | 57.2 | 80 | 219 | 19.53 |
10 | 362 | 63.5 | 121 | 273 | 31.49 |
12 | 419 | 73.2 | 121 | 324 | 45.42 |
14 | 467 | 82.6 | 121 | 356 | 52.05 |
16 | 524 | 91.9 | 127 | 406 | 66.61 |
18 | 594 | 101.6 | 133 | 457 | 87.55 |
20 | 648 | 111.3 | 127 | 508 | 111.74 |
24 | 772 | 133.4 | 140 | 610 | 191.39 |
NPS | O | T | W | B | Weight |
---|---|---|---|---|---|
1/2 | 61 | 22.4 | 38 | 21 | 0.21 |
3/4 | 67 | 25.4 | 45 | 27 | 0.36 |
1 | 71 | 25.4 | 54 | 34 | 0.48 |
1-1/4 | 81 | 25.4 | 54 | 42 | 0.61 |
1-1/2 | 92 | 28.4 | 57 | 48 | 0.92 |
2 | 124 | 35.1 | 54 | 61 | 1.77 |
2-1/2 | 137 | 38.1 | 57 | 73 | 2.71 |
3 | 168 | 44.5 | 73 | 89 | 3.58 |
4 | 194 | 47.8 | 76 | 114 | 5.55 |
5 | 229 | 53.8 | 76 | 141 | 9.49 |
6 | 248 | 60.5 | 79 | 168 | 13.40 |
8 | 318 | 73.2 | 86 | 219 | 22.62 |
10 | 371 | 82.5 | 133 | 273 | 40.43 |
12 | 438 | 101.6 | 133 | 324 | 68.32 |
14 | 489 | 111.3 | 140 | 356 | 92.53 |
16 | 546 | 124.0 | 146 | 406 | 125.86 |
18 | 613 | 133.0 | 152 | 457 | 167.28 |
20 | 673 | 142.7 | 165 | 508 | 201.85 |
24 | 794 | 168.1 | 178 | 610 | 331.03 |
NPS | O | T | W | B | Weight |
---|---|---|---|---|---|
1/2 | 65 | 25.4 | 38 | 21 | 0.34 |
3/4 | 73 | 28.4 | 45 | 27 | 0.41 |
1 | 83 | 28.4 | 54 | 34 | 0.55 |
1-1/4 | 102 | 35.1 | 54 | 42 | 0.97 |
1-1/2 | 114 | 38.1 | 61 | 48 | 1.43 |
2 | 133 | 41.1 | 57 | 61 | 2.16 |
2-1/2 | 149 | 47.8 | 61 | 73 | 3.30 |
3 | 168 | 50.8 | 76 | 89 | 5.14 |
4 | 203 | 63.5 | 83 | 114 | 8.72 |
5 | 241 | 73.2 | 89 | 141 | 14.23 |
6 | 279 | 82.6 | 95 | 168 | 20.49 |
8 | 340 | 98.6 | 95 | 219 | 37.92 |
10 | 425 | 117.3 | 91 | 273 | 68.48 |
12 | 495 | 133.4 | 152 | 324 | 106.87 |
