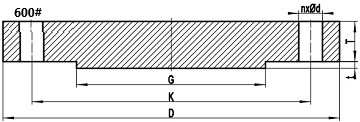

NPS | D | G | K | T |
---|---|---|---|---|
1/2 | 95 | 34.9 | 66.7 | 14.3 |
3/4 | 115 | 42.9 | 82.6 | 15.9 |
1 | 125 | 50.8 | 88.9 | 17.5 |
1-1/4 | 135 | 63.5 | 98.4 | 20.7 |
1-1/2 | 155 | 73.0 | 114.3 | 22.3 |
2 | 165 | 92.1 | 127.0 | 25.4 |
2-1/2 | 190 | 104.8 | 149.2 | 28.6 |
3 | 210 | 127.0 | 168.3 | 31.8 |
3-1/2 | 230 | 139.7 | 184.2 | 35.0 |
4 | 275 | 157.2 | 215.9 | 38.1 |
5 | 330 | 185.7 | 266.7 | 44.5 |
6 | 355 | 215.9 | 292.1 | 47.7 |
8 | 420 | 269.9 | 349.2 | 55.6 |
10 | 510 | 323.8 | 431.8 | 63.5 |
12 | 560 | 381.0 | 489.0 | 66.7 |
14 | 605 | 412.8 | 527.0 | 69.9 |
16 | 685 | 469.9 | 603.2 | 76.2 |
18 | 745 | 533.4 | 654.0 | 82.6 |
20 | 815 | 584.2 | 723.9 | 88.9 |
22 | 870 | 641.4 | 777.7 | 95.2 |
24 | 940 | 692.2 | 838.2 | 101.6 |
NPS | n | d | l | L | Mass |
---|---|---|---|---|---|
1/2 | 4 | 5/8 | 1/2 | 75 | 0.76 |
3/4 | 4 | 3/4 | 5/8 | 90 | 1.28 |
1 | 4 | 3/4 | 5/8 | 90 | 1.60 |
1-1/4 | 4 | 3/4 | 5/8 | 95 | 2.23 |
1-1/2 | 4 | 7/8 | 3/4 | 110 | 3.25 |
2 | 8 | 3/4 | 5/8 | 110 | 4.15 |
2-1/2 | 8 | 7/8 | 3/4 | 120 | 6.13 |
3 | 8 | 7/8 | 3/4 | 125 | 8.44 |
3-1/2 | 8 | 1 | 7/8 | 140 | 11.0 |
4 | 8 | 1 | 7/8 | 145 | 17.3 |
5 | 8 | 1-1/8 | 1 | 165 | 29.4 |
6 | 12 | 1-1/8 | 1 | 170 | 36.1 |
8 | 12 | 1-1/4 | 1-1/8 | 190 | 58.9 |
10 | 16 | 1-3/8 | 1-1/4 | 215 | 97.5 |
12 | 20 | 1-3/8 | 1-1/4 | 220 | 124 |
14 | 20 | 1-1/2 | 1-3/8 | 235 | 151 |
16 | 20 | 1-5/8 | 1-1/2 | 255 | 214 |
18 | 20 | 1-3/4 | 1-5/8 | 275 | 272 |
20 | 24 | 1-3/4 | 1-5/8 | 285 | 349 |
22 | 24 | 1-7/8 | 1-3/4 | 305 | … |
24 | 24 | 2 | 1-7/8 | 330 | 533 |
ASME B16.5 Blind Flanges, Classes | |||
---|---|---|---|
150# | 300# | 400# | 600# |
900# | 1500# | 2500# | - |
