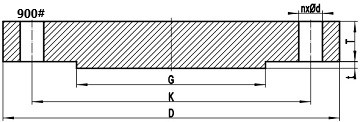

NPS | D | G | K | T |
---|---|---|---|---|
1/2 | 120 | 34.9 | 82.6 | 22.3 |
3/4 | 130 | 42.9 | 88.9 | 25.4 |
1 | 150 | 50.8 | 101.6 | 28.6 |
1-1/4 | 160 | 63.5 | 111.1 | 28.6 |
1-1/2 | 180 | 73.0 | 123.8 | 31.8 |
2 | 215 | 92.1 | 165.1 | 38.1 |
2-1/2 | 245 | 104.8 | 190.5 | 41.3 |
3 | 240 | 127.0 | 190.5 | 38.1 |
4 | 290 | 157.2 | 235.0 | 44.5 |
5 | 350 | 185.7 | 279.4 | 50.8 |
6 | 380 | 215.9 | 317.5 | 55.6 |
8 | 470 | 269.9 | 393.7 | 63.5 |
10 | 545 | 323.8 | 469.9 | 69.9 |
12 | 610 | 381.0 | 533.4 | 79.4 |
14 | 640 | 412.8 | 558.8 | 85.8 |
16 | 705 | 469.9 | 616.0 | 88.9 |
18 | 785 | 533.4 | 685.8 | 101.6 |
20 | 855 | 584.2 | 749.3 | 108.0 |
24 | 1040 | 692.2 | 901.7 | 139.7 |
NPS | n | d | l | L | Mass |
---|---|---|---|---|---|
1/2 | 4 | 7/8 | 3/4 | 110 | 1.77 |
3/4 | 4 | 7/8 | 3/4 | 115 | 2.42 |
1 | 4 | 1 | 7/8 | 125 | 3.57 |
1-1/4 | 4 | 1 | 7/8 | 125 | 4.14 |
1-1/2 | 4 | 1-1/8 | 1 | 140 | 5.75 |
2 | 8 | 1 | 7/8 | 145 | 10.1 |
2-1/2 | 8 | 1-1/8 | 1 | 160 | 14.0 |
3 | 8 | 1 | 7/8 | 145 | 13.1 |
4 | 8 | 1-1/4 | 1-1/8 | 170 | 26.9 |
5 | 8 | 1-3/8 | 1-1/4 | 190 | 36.5 |
6 | 12 | 1-1/4 | 1-1/8 | 190 | 47.4 |
8 | 12 | 1-1/2 | 1-3/8 | 220 | 82.5 |
10 | 16 | 1-1/2 | 1-3/8 | 235 | 122 |
12 | 20 | 1-1/2 | 1-3/8 | 255 | 173 |
14 | 20 | 1-5/8 | 1-1/2 | 275 | 206 |
16 | 20 | 1-3/4 | 1-5/8 | 285 | 259 |
18 | 20 | 2 | 1-7/8 | 325 | 367 |
20 | 20 | 2-1/8 | 2 | 350 | 463 |
24 | 20 | 2-5/8 | 2-1/2 | 440 | 876 |
ASME B16.5 Blind Flanges, Classes | |||
---|---|---|---|
150# | 300# | 400# | 600# |
900# | 1500# | 2500# | - |
