The EN 1092-1 Type 11 flanges are weld neck flanges, which have the same function and usage as that of ASME B16.5. It can be joined to piping by a butt welding process. The EN 1092-1 Type 11 weld neck flanges cover all standard PN designations: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN320, and PN 400. Generally, they shall be made by a forging process.

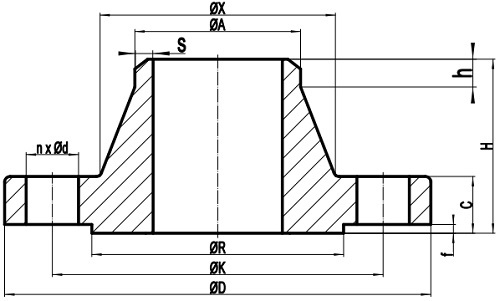

The denotation of dimensions: D – outside diameter; K – diameter of bolt circle; n – number of bolting; d – diameter of bolt hole; A – outside diameter of neck; X – diameter of neck root; S – wall thickness; h – straight length of neck; H – overall length of flange; C – flange thickness; f – height of raised face; R – diameter of raised face.
EN 1092-1 Type 11 weld neck flanges may be furnished with a series of facings from Type A to Type H, of which raised face (RF, Type B) is most commonly applied. When raised face is furnished, the transition from the raised face to the flange face can be by radius or chamfer. The height of raised face f doesn’t change in different PN designations but only varies in different size ranges. When raised face is furnished, its height shall be included by the flange thickness C as well as by the overall length of flange.
Size DN | f mm |
---|---|
10 | 2 |
15 | 2 |
20 | 2 |
25 | 2 |
32 | 2 |
40 | 3 |
50 | 3 |
65 | 3 |
80 | 3 |
100 | 3 |
125 | 3 |
150 | 3 |
200 | 3 |
250 | 3 |
300 | 4 |
350 | 4 |
400 | 4 |
450 | 4 |
500 | 4 |
600 | 5 |
700 | 5 |
800 | 5 |
900 | 5 |
1000 | 5 |
1200 | 5 |
1400 | 5 |
1600 | 5 |
1800 | 5 |
2000 | 5 |
2200 | 5 |
2400 | 5 |
2600 | 5 |
2800 | 5 |
3000 | 5 |
3200 | 5 |
3400 | 5 |
3600 | 5 |
3800 | 5 |
4000 | 5 |
Size DN | PN 2.5 kg | PN 6 kg | PN 10 kg | PN 16 kg |
---|---|---|---|---|
10 | 0.353 | 0.353 | 0.678 | 0.678 |
15 | 0.408 | 0.408 | 0.768 | 0.768 |
20 | 0.621 | 0.621 | 1.09 | 1.09 |
25 | 0.762 | 0.762 | 1.30 | 1.30 |
32 | 1.11 | 1.11 | 1.91 | 1.91 |
40 | 1.26 | 1.26 | 2.15 | 2.15 |
50 | 1.43 | 1.43 | 2.53 | 2.53 |
65 | 1.77 | 1.77 | 3.03 | 3.03 |
80 | 2.88 | 2.88 | 3.92 | 3.92 |
100 | 3.41 | 3.41 | 4.62 | 4.62 |
125 | 4.65 | 4.65 | 6.30 | 6.30 |
150 | 5.50 | 5.50 | 7.81 | 7.81 |
200 | 8.60 | 8.60 | 11.6 | 11.5 |
250 | 11.7 | 11.7 | 15.8 | 16.7 |
300 | 15.3 | 15.3 | 18.3 | 22.1 |
350 | 20.3 | 20.3 | 25.3 | 32.8 |
400 | 23.1 | 23.1 | 30.6 | 41.1 |
450 | 27.0 | 27.0 | 35.1 | 48.5 |
500 | 30.8 | 30.8 | 40.5 | 63.4 |
600 | 44.0 | 44.0 | 52.9 | 94 |
700 | 53.7 | 53.7 | 75.8 | 96.5 |
800 | 64.4 | 64.4 | 102 | 122 |
900 | 79.2 | 79.2 | 121 | 155 |
1000 | 98.6 | 98.6 | 161 | 233 |
1200 | 104 | 152 | 258 | 390 |
1400 | 133 | 246 | 371 | 495 |
1600 | 188 | 309 | 547 | 760 |
1800 | 215 | 400 | 691 | 929 |
2000 | 260 | 516 | 830 | 1185 |
2200 | 332 | 645 | 1073 | - |
2400 | 392 | 786 | 1329 | - |
2600 | 497 | 1021 | 1574 | - |
2800 | 668 | 1256 | 1987 | - |
3000 | 772 | 1404 | 2476 | - |
3200 | 869 | 1617 | - | - |
3400 | 988 | 1877 | - | - |
3600 | 1156 | 2366 | - | - |
3800 | 1309 | - | - | - |
4000 | 1441 | - | - | - |
Size DN | PN 25 kg | PN 40 kg | PN 63 kg | PN 100 kg |
---|---|---|---|---|
10 | 0.678 | 0.678 | 1.09 | 1.09 |
15 | 0.768 | 0.768 | 1.20 | 1.20 |
20 | 1.09 | 1.09 | 2.02 | 2.02 |
25 | 1.30 | 1.30 | 2.63 | 2.63 |
32 | 1.91 | 1.91 | 3.20 | 3.20 |
40 | 2.15 | 2.15 | 4.07 | 4.07 |
50 | 2.85 | 2.85 | 4.51 | 5.82 |
65 | 3.68 | 3.68 | 5.58 | 7.57 |
80 | 4.78 | 4.78 | 6.68 | 8.82 |
100 | 6.46 | 6.46 | 9.27 | 13.1 |
125 | 8.86 | 8.86 | 14.5 | 21.0 |
150 | 11.7 | 11.7 | 21.4 | 28.3 |
200 | 17.1 | 21.0 | 34.1 | 50.2 |
250 | 24.3 | 34.2 | 48.3 | 81.4 |
300 | 31.8 | 47.6 | 67.5 | 118 |
350 | 48.8 | 69.3 | 97.8 | 169 |
400 | 63.3 | 98 | 129 | - |
450 | 76.0 | 105 | - | - |
500 | 97.0 | 130 | - | - |
600 | 121 | 209 | - | - |
700 | 155 | - | - | - |
800 | 205 | - | - | - |
900 | 249 | - | - | - |
1000 | 338 | - | - | - |
Size DN | PN 160 kg | PN 250 kg | PN 320 kg | PN 400 kg |
---|---|---|---|---|
10 | 1.10 | - | 2.14 | 2.55 |
15 | 1.20 | 2.51 | 2.53 | 3.62 |
25 | 2.64 | 3.58 | 5.18 | 7.45 |
40 | 4.42 | 6.72 | 8.65 | 14.1 |
50 | 6.38 | 8.22 | 10.7 | 16.7 |
65 | 8.75 | 12.8 | 19.5 | 31.6 |
80 | 10.3 | 16.5 | 25.2 | 38.4 |
100 | 15.3 | 27.2 | 42.5 | 67.3 |
125 | 24.4 | 39.0 | 63.6 | 94.5 |
150 | 34.4 | 59.6 | 91.5 | 145 |
200 | 60.7 | 110 | 172 | 270 |
250 | 97.6 | 190 | 312 | - |
300 | 140 | - | - | - |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 75 | 50 | 35 | 12 |
15 | 80 | 55 | 40 | 12 |
20 | 90 | 65 | 50 | 14 |
25 | 100 | 75 | 60 | 14 |
32 | 120 | 90 | 70 | 14 |
40 | 130 | 100 | 80 | 14 |
50 | 140 | 110 | 90 | 14 |
65 | 160 | 130 | 110 | 14 |
80 | 190 | 150 | 128 | 16 |
100 | 210 | 170 | 148 | 16 |
125 | 240 | 200 | 178 | 18 |
150 | 265 | 225 | 202 | 18 |
200 | 320 | 280 | 258 | 20 |
250 | 375 | 335 | 312 | 22 |
300 | 440 | 395 | 365 | 22 |
350 | 490 | 445 | 415 | 22 |
400 | 540 | 495 | 465 | 22 |
450 | 595 | 550 | 520 | 22 |
500 | 645 | 600 | 570 | 24 |
600 | 755 | 705 | 670 | 30 |
700 | 860 | 810 | 775 | 30 |
800 | 975 | 920 | 880 | 30 |
900 | 1075 | 1020 | 980 | 30 |
1000 | 1175 | 1120 | 1080 | 30 |
1200 | 1375 | 1320 | 1280 | 32 |
1400 | 1575 | 1520 | 1480 | 38 |
1600 | 1790 | 1730 | 1690 | 46 |
1800 | 1990 | 1930 | 1890 | 46 |
2000 | 2190 | 2130 | 2090 | 50 |
2200 | 2405 | 2340 | 2295 | 56 |
2400 | 2605 | 2540 | 2495 | 62 |
2600 | 2805 | 2740 | 2695 | 64 |
2800 | 3030 | 2960 | 2910 | 74 |
3000 | 3230 | 3160 | 3110 | 80 |
3200 | 3430 | 3360 | 3310 | 84 |
3400 | 3630 | 3560 | 3510 | 90 |
3600 | 3840 | 3770 | 3720 | 96 |
3800 | 4045 | 3970 | 3920 | 102 |
4000 | 4245 | 4170 | 4120 | 106 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 28 | 6 | 26 | 17.2 |
15 | 30 | 6 | 30 | 21.3 |
20 | 32 | 6 | 38 | 26.9 |
25 | 35 | 6 | 42 | 33.7 |
32 | 35 | 6 | 55 | 42.4 |
40 | 38 | 7 | 62 | 48.3 |
50 | 38 | 8 | 74 | 60.3 |
65 | 38 | 9 | 88 | 76.1 |
80 | 42 | 10 | 102 | 88.9 |
100 | 45 | 10 | 130 | 114.3 |
125 | 48 | 10 | 155 | 139.7 |
150 | 48 | 12 | 184 | 168.3 |
200 | 55 | 15 | 236 | 219.1 |
250 | 60 | 15 | 290 | 273.0 |
300 | 62 | 15 | 342 | 323.9 |
350 | 62 | 15 | 385 | 355.6 |
400 | 65 | 15 | 438 | 406.4 |
450 | 65 | 15 | 492 | 457.0 |
500 | 68 | 15 | 538 | 508.0 |
600 | 70 | 16 | 640 | 610.0 |
700 | 76 | 16 | 740 | 711.0 |
800 | 76 | 16 | 842 | 813.0 |
900 | 74 | 16 | 942 | 914.0 |
1000 | 74 | 16 | 1045 | 1016 |
1200 | 94 | 16 | 1245 | 1219 |
1400 | 96 | 16 | 1445 | 1422 |
1600 | 102 | 20 | 1645 | 1626 |
1800 | 110 | 20 | 1845 | 1829 |
2000 | 122 | 22 | 2045 | 2032 |
2200 | 129 | 25 | 2248 | 2235 |
2400 | 143 | 25 | 2448 | 2438 |
2600 | 148 | 25 | 2648 | 2620 |
2800 | 161 | 25 | 2848 | 2820 |
3000 | 170 | 25 | 3050 | 3020 |
3200 | 180 | 25 | 3250 | 3220 |
3400 | 194 | 28 | 3450 | 3420 |
3600 | 201 | 28 | 3652 | 3620 |
3800 | 212 | 28 | 3852 | 3820 |
4000 | 226 | 28 | 4052 | 4020 |
Size DN | S mm | n | d | Bolt |
---|---|---|---|---|
10 | 2.0 | 4 | 11 | M10 |
15 | 2.0 | 4 | 11 | M10 |
20 | 2.3 | 4 | 11 | M10 |
25 | 2.6 | 4 | 11 | M10 |
32 | 2.6 | 4 | 14 | M12 |
40 | 2.6 | 4 | 14 | M12 |
50 | 2.9 | 4 | 14 | M12 |
65 | 2.9 | 4 | 14 | M12 |
80 | 3.2 | 4 | 18 | M16 |
100 | 3.6 | 4 | 18 | M16 |
125 | 4.0 | 8 | 18 | M16 |
150 | 4.5 | 8 | 18 | M16 |
200 | 6.3 | 8 | 18 | M16 |
250 | 6.3 | 12 | 18 | M16 |
300 | 7.1 | 12 | 22 | M20 |
350 | 7.1 | 12 | 22 | M20 |
400 | 7.1 | 16 | 22 | M20 |
450 | 7.1 | 16 | 22 | M20 |
500 | 7.1 | 20 | 22 | M20 |
600 | 7.1 | 20 | 26 | M24 |
700 | 7.1 | 24 | 26 | M24 |
800 | 7.1 | 24 | 30 | M27 |
900 | 7.1 | 24 | 30 | M27 |
1000 | 7.1 | 28 | 30 | M27 |
1200 | 8 | 32 | 30 | M27 |
1400 | 8 | 36 | 30 | M27 |
1600 | 8.8 | 40 | 30 | M27 |
1800 | 10 | 44 | 30 | M27 |
2000 | 11 | 48 | 30 | M27 |
2200 | 11 | 52 | 33 | M30 |
2400 | 11 | 56 | 33 | M30 |
2600 | 11 | 60 | 33 | M30 |
2800 | 11 | 64 | 36 | M33 |
3000 | 11 | 68 | 36 | M33 |
3200 | 11 | 72 | 36 | M33 |
3400 | 11 | 76 | 36 | M33 |
3600 | 11 | 80 | 36 | M33 |
3800 | 11 | 80 | 39 | M36 |
4000 | 11 | 84 | 39 | M36 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 75 | 50 | 35 | 12 |
15 | 80 | 55 | 40 | 12 |
20 | 90 | 65 | 50 | 14 |
25 | 100 | 75 | 60 | 14 |
32 | 120 | 90 | 70 | 14 |
40 | 130 | 100 | 80 | 14 |
50 | 140 | 110 | 90 | 14 |
65 | 160 | 130 | 110 | 14 |
80 | 190 | 150 | 128 | 16 |
100 | 210 | 170 | 148 | 16 |
125 | 240 | 200 | 178 | 18 |
150 | 265 | 225 | 202 | 18 |
200 | 320 | 280 | 258 | 20 |
250 | 375 | 335 | 312 | 22 |
300 | 440 | 395 | 365 | 22 |
350 | 490 | 445 | 415 | 22 |
400 | 540 | 495 | 465 | 22 |
450 | 595 | 550 | 520 | 22 |
500 | 645 | 600 | 570 | 24 |
600 | 755 | 705 | 670 | 30 |
700 | 860 | 810 | 775 | 30 |
800 | 975 | 920 | 880 | 30 |
900 | 1075 | 1020 | 980 | 34 |
1000 | 1175 | 1120 | 1080 | 38 |
1200 | 1405 | 1340 | 1295 | 42 |
1400 | 1630 | 1560 | 1510 | 56 |
1600 | 1830 | 1760 | 1710 | 63 |
1800 | 2045 | 1970 | 1920 | 69 |
2000 | 2265 | 2180 | 2125 | 74 |
2200 | 2475 | 2390 | 2335 | 81 |
2400 | 2685 | 2600 | 2545 | 87 |
2600 | 2905 | 2810 | 2750 | 91 |
2800 | 3115 | 3020 | 2960 | 101 |
3000 | 3315 | 3220 | 3160 | 102 |
3200 | 3525 | 3430 | 3370 | 106 |
3400 | 3735 | 3640 | 3580 | 110 |
3600 | 3970 | 3860 | 3790 | 124 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 28 | 6 | 26 | 17.2 |
15 | 30 | 6 | 30 | 21.3 |
20 | 32 | 6 | 38 | 26.9 |
25 | 35 | 6 | 42 | 33.7 |
32 | 35 | 6 | 55 | 42.4 |
40 | 38 | 7 | 62 | 48.3 |
50 | 38 | 8 | 74 | 60.3 |
65 | 38 | 9 | 88 | 76.1 |
80 | 42 | 10 | 102 | 88.9 |
100 | 45 | 10 | 130 | 114.3 |
125 | 48 | 10 | 155 | 139.7 |
150 | 48 | 12 | 184 | 168.3 |
200 | 55 | 15 | 236 | 219.1 |
250 | 60 | 15 | 290 | 273.0 |
300 | 62 | 15 | 342 | 323.9 |
350 | 62 | 15 | 385 | 355.6 |
400 | 65 | 15 | 438 | 406.4 |
450 | 65 | 15 | 492 | 457.0 |
500 | 68 | 15 | 538 | 508.0 |
600 | 70 | 16 | 640 | 610.0 |
700 | 76 | 16 | 740 | 711.0 |
800 | 76 | 16 | 842 | 813.0 |
900 | 78 | 16 | 942 | 914.0 |
1000 | 82 | 16 | 1045 | 1016 |
1200 | 104 | 20 | 1248 | 1219 |
1400 | 114 | 20 | 1452 | 1422 |
1600 | 119 | 20 | 1655 | 1626 |
1800 | 133 | 20 | 1855 | 1829 |
2000 | 146 | 25 | 2058 | 2032 |
2200 | 154 | 25 | 2260 | 2235 |
2400 | 168 | 25 | 2462 | 2438 |
2600 | 175 | 25 | 2665 | 2620 |
2800 | 188 | 30 | 2865 | 2820 |
3000 | 192 | 30 | 3068 | 3020 |
3200 | 202 | 30 | 3272 | 3220 |
3400 | 214 | 35 | 3475 | 3420 |
3600 | 229 | 35 | 3678 | 3620 |
Size DN | S mm | n | d | Bolt |
---|---|---|---|---|
10 | 2.0 | 4 | 11 | M10 |
15 | 2.0 | 4 | 11 | M10 |
20 | 2.3 | 4 | 11 | M10 |
25 | 2.6 | 4 | 11 | M10 |
32 | 2.6 | 4 | 14 | M12 |
40 | 2.6 | 4 | 14 | M12 |
50 | 2.9 | 4 | 14 | M12 |
65 | 2.9 | 4 | 14 | M12 |
80 | 3.2 | 4 | 18 | M16 |
100 | 3.6 | 4 | 18 | M16 |
125 | 4.0 | 8 | 18 | M16 |
150 | 4.5 | 8 | 18 | M16 |
200 | 6.3 | 8 | 18 | M16 |
250 | 6.3 | 12 | 18 | M16 |
300 | 7.1 | 12 | 22 | M20 |
350 | 7.1 | 12 | 22 | M20 |
400 | 7.1 | 16 | 22 | M20 |
450 | 7.1 | 16 | 22 | M20 |
500 | 7.1 | 20 | 22 | M20 |
600 | 7.1 | 20 | 26 | M24 |
700 | 7.1 | 24 | 26 | M24 |
800 | 7.1 | 24 | 30 | M27 |
900 | 7.1 | 24 | 30 | M27 |
1000 | 7.1 | 28 | 30 | M27 |
1200 | 8.8 | 32 | 33 | M30 |
1400 | 8.8 | 36 | 36 | M33 |
1600 | 10 | 40 | 36 | M33 |
1800 | 11 | 44 | 39 | M36 |
2000 | 12.5 | 48 | 42 | M39 |
2200 | 14 | 52 | 42 | M39 |
2400 | 15 | 56 | 42 | M39 |
2600 | 16 | 60 | 48 | M45 |
2800 | 17 | 64 | 48 | M45 |
3000 | 20 | 68 | 48 | M45 |
3200 | 20 | 72 | 48 | M45 |
3400 | 22 | 76 | 48 | M45 |
3600 | 22 | 80 | 56 | M52 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 90 | 60 | 40 | 16 |
15 | 95 | 65 | 45 | 16 |
20 | 105 | 75 | 58 | 18 |
25 | 115 | 85 | 68 | 18 |
32 | 140 | 100 | 78 | 18 |
40 | 150 | 110 | 88 | 18 |
50 | 165 | 125 | 102 | 18 |
65 | 185 | 145 | 122 | 18 |
80 | 200 | 160 | 138 | 20 |
100 | 220 | 180 | 158 | 20 |
125 | 250 | 210 | 188 | 22 |
150 | 285 | 240 | 212 | 22 |
200 | 340 | 295 | 268 | 24 |
250 | 395 | 350 | 320 | 26 |
300 | 445 | 400 | 370 | 26 |
350 | 505 | 460 | 430 | 26 |
400 | 565 | 515 | 482 | 26 |
450 | 615 | 565 | 532 | 28 |
500 | 670 | 620 | 585 | 28 |
600 | 780 | 725 | 685 | 30 |
700 | 895 | 840 | 800 | 35 |
800 | 1015 | 950 | 905 | 38 |
900 | 1115 | 1050 | 1005 | 38 |
1000 | 1230 | 1160 | 1110 | 44 |
1200 | 1455 | 1380 | 1330 | 55 |
1400 | 1675 | 1590 | 1535 | 65 |
1600 | 1915 | 1820 | 1760 | 75 |
1800 | 2115 | 2020 | 1960 | 85 |
2000 | 2325 | 2230 | 2170 | 90 |
2200 | 2550 | 2440 | 2370 | 100 |
2400 | 2760 | 2650 | 2570 | 110 |
2600 | 2960 | 2850 | 2780 | 110 |
2800 | 3180 | 3070 | 3000 | 124 |
3000 | 3405 | 3290 | 3210 | 132 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 35 | 6 | 28 | 17.2 |
15 | 38 | 6 | 32 | 21.3 |
20 | 40 | 6 | 40 | 26.9 |
25 | 40 | 6 | 46 | 33.7 |
32 | 42 | 6 | 56 | 42.4 |
40 | 45 | 7 | 64 | 48.3 |
50 | 45 | 8 | 74 | 60.3 |
65 | 45 | 10 | 92 | 76.1 |
80 | 50 | 10 | 105 | 88.9 |
100 | 52 | 12 | 131 | 114.3 |
125 | 55 | 12 | 156 | 139.7 |
150 | 55 | 12 | 184 | 168.3 |
200 | 62 | 16 | 234 | 219.1 |
250 | 68 | 16 | 292 | 273.0 |
300 | 68 | 16 | 342 | 323.9 |
350 | 68 | 16 | 385 | 355.6 |
400 | 72 | 16 | 440 | 406.4 |
450 | 72 | 16 | 488 | 457.0 |
500 | 75 | 16 | 542 | 508.0 |
600 | 82 | 18 | 642 | 610.0 |
700 | 85 | 18 | 746 | 711.0 |
800 | 96 | 18 | 850 | 813.0 |
900 | 99 | 20 | 950 | 914.0 |
1000 | 105 | 20 | 1052 | 1016 |
1200 | 132 | 25 | 1256 | 1219 |
1400 | 143 | 25 | 1460 | 1422 |
1600 | 159 | 25 | 1666 | 1626 |
1800 | 175 | 30 | 1868 | 1829 |
2000 | 186 | 30 | 2072 | 2032 |
2200 | 202 | 35 | 2275 | 2235 |
2400 | 218 | 35 | 2478 | 2438 |
2600 | 224 | 40 | 2680 | 2620 |
2800 | 244 | 40 | 2882 | 2820 |
3000 | 257 | 45 | 3085 | 3020 |
Size DN | S mm | n | d | Bolt |
---|---|---|---|---|
10 | 2.0 | 4 | 14 | M12 |
15 | 2.0 | 4 | 14 | M12 |
20 | 2.3 | 4 | 14 | M12 |
25 | 2.6 | 4 | 14 | M12 |
32 | 2.6 | 4 | 18 | M16 |
40 | 2.6 | 4 | 18 | M16 |
50 | 2.9 | 4 | 18 | M16 |
65 | 2.9 | 8 | 18 | M16 |
80 | 3.2 | 8 | 18 | M16 |
100 | 3.6 | 8 | 18 | M16 |
125 | 4.0 | 8 | 18 | M16 |
150 | 4.5 | 8 | 22 | M20 |
200 | 6.3 | 8 | 22 | M20 |
250 | 6.3 | 12 | 22 | M20 |
300 | 7.1 | 12 | 22 | M20 |
350 | 7.1 | 16 | 22 | M20 |
400 | 7.1 | 16 | 26 | M24 |
450 | 7.1 | 20 | 26 | M24 |
500 | 7.1 | 20 | 26 | M24 |
600 | 8 | 20 | 30 | M27 |
700 | 8.8 | 24 | 30 | M27 |
800 | 8.8 | 24 | 33 | M30 |
900 | 12.5 | 28 | 33 | M30 |
1000 | 12.5 | 28 | 36 | M33 |
1200 | 12.5 | 32 | 39 | M36 |
1400 | 14.2 | 36 | 42 | M39 |
1600 | 16.0 | 40 | 48 | M45 |
1800 | 17.5 | 44 | 48 | M45 |
2000 | 17.5 | 48 | 48 | M45 |
2200 | 20.0 | 52 | 56 | M52 |
2400 | 22.2 | 56 | 56 | M52 |
2600 | 25.0 | 60 | 56 | M52 |
2800 | 25.0 | 64 | 56 | M52 |
3000 | 32.0 | 68 | 62 | M56 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 90 | 60 | 40 | 16 |
15 | 95 | 65 | 45 | 16 |
20 | 105 | 75 | 58 | 18 |
25 | 115 | 85 | 68 | 18 |
32 | 140 | 100 | 78 | 18 |
40 | 150 | 110 | 88 | 18 |
50 | 165 | 125 | 102 | 18 |
65 | 185 | 145 | 122 | 18 |
80 | 200 | 160 | 138 | 20 |
100 | 220 | 180 | 158 | 20 |
125 | 250 | 210 | 188 | 22 |
150 | 285 | 240 | 212 | 22 |
200 | 340 | 295 | 268 | 24 |
250 | 405 | 355 | 320 | 26 |
300 | 460 | 410 | 378 | 28 |
350 | 520 | 470 | 438 | 30 |
400 | 580 | 525 | 490 | 32 |
450 | 640 | 585 | 550 | 34 |
500 | 715 | 650 | 610 | 36 |
600 | 840 | 770 | 725 | 40 |
700 | 910 | 840 | 795 | 40 |
800 | 1025 | 950 | 900 | 41 |
900 | 1125 | 1050 | 1000 | 48 |
1000 | 1255 | 1170 | 1115 | 59 |
1200 | 1485 | 1390 | 1330 | 78 |
1400 | 1685 | 1590 | 1530 | 84 |
1600 | 1930 | 1820 | 1750 | 102 |
1800 | 2130 | 2020 | 1950 | 110 |
2000 | 2345 | 2230 | 2150 | 124 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 35 | 6 | 28 | 17.2 |
15 | 38 | 6 | 32 | 21.3 |
20 | 40 | 6 | 40 | 26.9 |
25 | 40 | 6 | 46 | 33.7 |
32 | 42 | 6 | 56 | 42.4 |
40 | 45 | 7 | 64 | 48.3 |
50 | 45 | 8 | 74 | 60.3 |
65 | 45 | 10 | 92 | 76.1 |
80 | 50 | 10 | 105 | 88.9 |
100 | 52 | 12 | 131 | 114.3 |
125 | 55 | 12 | 156 | 139.7 |
150 | 55 | 12 | 184 | 168.3 |
200 | 62 | 16 | 235 | 219.1 |
250 | 70 | 16 | 292 | 273.0 |
300 | 78 | 16 | 344 | 323.9 |
350 | 82 | 16 | 390 | 355.6 |
400 | 85 | 16 | 445 | 406.4 |
450 | 83 | 16 | 490 | 457.0 |
500 | 84 | 16 | 548 | 508.0 |
600 | 88 | 18 | 670 | 610.0 |
700 | 104 | 18 | 755 | 711.0 |
800 | 108 | 20 | 855 | 813.0 |
900 | 118 | 20 | 955 | 914.0 |
1000 | 137 | 22 | 1058 | 1016 |
1200 | 160 | 30 | 1262 | 1219 |
1400 | 177 | 30 | 1465 | 1422 |
1600 | 204 | 35 | 1668 | 1626 |
1800 | 218 | 35 | 1870 | 1829 |
2000 | 238 | 40 | 2072 | 2032 |
Size DN | S | n | d | Bolt |
---|---|---|---|---|
10 | 2.0 | 4 | 14 | M12 |
15 | 2.0 | 4 | 14 | M12 |
20 | 2.3 | 4 | 14 | M12 |
25 | 2.6 | 4 | 14 | M12 |
32 | 2.6 | 4 | 18 | M16 |
40 | 2.6 | 4 | 18 | M16 |
50 | 2.9 | 4 | 18 | M16 |
65 | 2.9 | 8 | 18 | M16 |
80 | 3.2 | 8 | 18 | M16 |
100 | 3.6 | 8 | 18 | M16 |
125 | 4.0 | 8 | 18 | M16 |
150 | 4.5 | 8 | 22 | M20 |
200 | 6.3 | 12 | 22 | M20 |
250 | 6.3 | 12 | 26 | M24 |
300 | 7.1 | 12 | 26 | M24 |
350 | 8.0 | 16 | 26 | M24 |
400 | 8.0 | 16 | 30 | M27 |
450 | 8.8 | 20 | 30 | M27 |
500 | 8.8 | 20 | 33 | M30 |
600 | 11.0 | 20 | 36 | M33 |
700 | 11.0 | 24 | 36 | M33 |
800 | 12.5 | 24 | 39 | M36 |
900 | 12.5 | 28 | 39 | M36 |
1000 | 12.5 | 28 | 42 | M39 |
1200 | 14.2 | 32 | 48 | M45 |
1400 | 16.0 | 36 | 48 | M45 |
1600 | 17.5 | 40 | 56 | M52 |
1800 | 20.0 | 44 | 56 | M52 |
2000 | 22.0 | 48 | 62 | M56 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 90 | 60 | 40 | 16 |
15 | 95 | 65 | 45 | 16 |
20 | 105 | 75 | 58 | 18 |
25 | 115 | 85 | 68 | 18 |
32 | 140 | 100 | 78 | 18 |
40 | 150 | 110 | 88 | 18 |
50 | 165 | 125 | 102 | 20 |
65 | 185 | 145 | 122 | 22 |
80 | 200 | 160 | 138 | 24 |
100 | 235 | 190 | 162 | 24 |
125 | 270 | 220 | 188 | 26 |
150 | 300 | 250 | 218 | 28 |
200 | 360 | 310 | 278 | 30 |
250 | 425 | 370 | 335 | 32 |
300 | 485 | 430 | 395 | 34 |
350 | 555 | 490 | 450 | 38 |
400 | 620 | 550 | 505 | 40 |
450 | 670 | 600 | 555 | 46 |
500 | 730 | 660 | 615 | 48 |
600 | 845 | 770 | 720 | 48 |
700 | 960 | 875 | 820 | 50 |
800 | 1085 | 990 | 930 | 53 |
900 | 1185 | 1090 | 1030 | 57 |
1000 | 1320 | 1210 | 1140 | 63 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 35 | 6 | 28 | 17.2 |
15 | 38 | 6 | 32 | 21.3 |
20 | 40 | 6 | 40 | 26.9 |
25 | 40 | 6 | 46 | 33.7 |
32 | 42 | 6 | 56 | 42.4 |
40 | 45 | 7 | 64 | 48.3 |
50 | 48 | 8 | 75 | 60.3 |
65 | 52 | 10 | 90 | 76.1 |
80 | 58 | 12 | 105 | 88.9 |
100 | 65 | 12 | 134 | 114.3 |
125 | 68 | 12 | 162 | 139.7 |
150 | 75 | 12 | 192 | 168.3 |
200 | 80 | 16 | 244 | 219.1 |
250 | 88 | 18 | 298 | 273.0 |
300 | 92 | 18 | 352 | 323.9 |
350 | 100 | 20 | 398 | 355.6 |
400 | 110 | 20 | 452 | 406.4 |
450 | 110 | 20 | 500 | 457.0 |
500 | 125 | 20 | 558 | 508.0 |
600 | 125 | 20 | 660 | 610.0 |
700 | 129 | 20 | 760 | 711.0 |
800 | 138 | 22 | 864 | 813.0 |
900 | 148 | 24 | 968 | 914.0 |
1000 | 160 | 24 | 1070 | 1016 |
Size DN | S | n | d | Bolt |
---|---|---|---|---|
10 | 2.0 | 4 | 14 | M12 |
15 | 2.0 | 4 | 14 | M12 |
20 | 2.3 | 4 | 14 | M12 |
25 | 2.6 | 4 | 14 | M12 |
32 | 2.6 | 4 | 18 | M16 |
40 | 2.6 | 4 | 18 | M16 |
50 | 2.9 | 4 | 18 | M16 |
65 | 2.9 | 8 | 18 | M16 |
80 | 3.2 | 8 | 18 | M16 |
100 | 3.6 | 8 | 22 | M20 |
125 | 4.0 | 8 | 26 | M24 |
150 | 4.5 | 8 | 26 | M24 |
200 | 6.3 | 12 | 26 | M24 |
250 | 7.1 | 12 | 30 | M27 |
300 | 8.0 | 16 | 30 | M27 |
350 | 8.0 | 16 | 33 | M30 |
400 | 8.8 | 16 | 36 | M33 |
450 | 8.8 | 20 | 36 | M33 |
500 | 10.0 | 20 | 36 | M33 |
600 | 12.5 | 20 | 39 | M36 |
700 | 14.2 | 24 | 42 | M39 |
800 | 16.0 | 24 | 48 | M45 |
900 | 17.5 | 28 | 48 | M45 |
1000 | 20.0 | 28 | 56 | M52 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 90 | 60 | 40 | 16 |
15 | 95 | 65 | 45 | 16 |
20 | 105 | 75 | 58 | 18 |
25 | 115 | 85 | 68 | 18 |
32 | 140 | 100 | 78 | 18 |
40 | 150 | 110 | 88 | 18 |
50 | 165 | 125 | 102 | 20 |
65 | 185 | 145 | 122 | 22 |
80 | 200 | 160 | 138 | 24 |
100 | 235 | 190 | 162 | 24 |
125 | 270 | 220 | 188 | 26 |
150 | 300 | 250 | 218 | 28 |
200 | 375 | 320 | 285 | 34 |
250 | 450 | 385 | 345 | 38 |
300 | 515 | 450 | 410 | 42 |
350 | 580 | 510 | 465 | 46 |
400 | 660 | 585 | 535 | 50 |
450 | 685 | 610 | 560 | 57 |
500 | 755 | 670 | 615 | 57 |
600 | 890 | 795 | 735 | 72 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 35 | 6 | 28 | 17.2 |
15 | 38 | 6 | 32 | 21.3 |
20 | 40 | 6 | 40 | 26.9 |
25 | 40 | 6 | 46 | 33.7 |
32 | 42 | 6 | 56 | 42.4 |
40 | 45 | 7 | 64 | 48.3 |
50 | 48 | 8 | 75 | 60.3 |
65 | 52 | 10 | 90 | 76.1 |
80 | 58 | 12 | 105 | 88.9 |
100 | 65 | 12 | 134 | 114.3 |
125 | 68 | 12 | 162 | 139.7 |
150 | 75 | 12 | 192 | 168.3 |
200 | 88 | 16 | 244 | 219.1 |
250 | 105 | 18 | 306 | 273.0 |
300 | 115 | 18 | 362 | 323.9 |
350 | 125 | 20 | 408 | 355.6 |
400 | 135 | 20 | 462 | 406.4 |
450 | 135 | 20 | 500 | 457.0 |
500 | 140 | 20 | 562 | 508.0 |
600 | 150 | 20 | 666 | 610.0 |
Size DN | S | n | d | Bolt |
---|---|---|---|---|
10 | 2.0 | 4 | 14 | M12 |
15 | 2.0 | 4 | 14 | M12 |
20 | 2.3 | 4 | 14 | M12 |
25 | 2.6 | 4 | 14 | M12 |
32 | 2.6 | 4 | 18 | M16 |
40 | 2.6 | 4 | 18 | M16 |
50 | 2.9 | 4 | 18 | M16 |
65 | 2.9 | 8 | 18 | M16 |
80 | 3.2 | 8 | 18 | M16 |
100 | 3.6 | 8 | 22 | M20 |
125 | 4.0 | 8 | 26 | M24 |
150 | 4.5 | 8 | 26 | M24 |
200 | 6.3 | 12 | 30 | M27 |
250 | 7.1 | 12 | 33 | M30 |
300 | 8.0 | 16 | 33 | M30 |
350 | 8.8 | 16 | 36 | M33 |
400 | 11.0 | 16 | 39 | M36 |
450 | 12.5 | 20 | 39 | M36 |
500 | 14.2 | 20 | 42 | M39 |
600 | 16.0 | 20 | 48 | M45 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 100 | 70 | 40 | 20 |
15 | 105 | 75 | 45 | 20 |
20 | 130 | 90 | 58 | 22 |
25 | 140 | 100 | 68 | 24 |
32 | 155 | 110 | 78 | 24 |
40 | 170 | 125 | 88 | 26 |
50 | 180 | 135 | 102 | 26 |
65 | 205 | 160 | 122 | 26 |
80 | 215 | 170 | 138 | 28 |
100 | 250 | 200 | 162 | 30 |
125 | 295 | 240 | 188 | 34 |
150 | 345 | 280 | 218 | 36 |
200 | 415 | 345 | 285 | 42 |
250 | 470 | 400 | 345 | 46 |
300 | 530 | 460 | 410 | 52 |
350 | 600 | 525 | 465 | 56 |
400 | 670 | 585 | 535 | 60 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 45 | 6 | 28 | 17.2 |
15 | 45 | 6 | 32 | 21.3 |
20 | 48 | 8 | 40 | 26.9 |
25 | 58 | 8 | 46 | 33.7 |
32 | 60 | 8 | 56 | 42.4 |
40 | 62 | 10 | 64 | 48.3 |
50 | 62 | 10 | 75 | 60.3 |
65 | 68 | 12 | 90 | 76.1 |
80 | 72 | 12 | 105 | 88.9 |
100 | 78 | 12 | 134 | 114.3 |
125 | 88 | 12 | 162 | 139.7 |
150 | 95 | 12 | 192 | 168.3 |
200 | 110 | 16 | 244 | 219.1 |
250 | 125 | 18 | 306 | 273.0 |
300 | 140 | 18 | 362 | 323.9 |
350 | 150 | 20 | 408 | 355.6 |
400 | 160 | 20 | 462 | 406.4 |
Size DN | S | n | d | Bolt |
---|---|---|---|---|
10 | 2.0 | 4 | 14 | M12 |
15 | 2.0 | 4 | 14 | M12 |
20 | 2.6 | 4 | 18 | M16 |
25 | 2.6 | 4 | 18 | M16 |
32 | 2.9 | 4 | 22 | M20 |
40 | 2.9 | 4 | 22 | M20 |
50 | 2.9 | 4 | 22 | M20 |
65 | 3.2 | 8 | 22 | M20 |
80 | 3.6 | 8 | 22 | M20 |
100 | 4.0 | 8 | 26 | M24 |
125 | 4.5 | 8 | 30 | M27 |
150 | 5.6 | 8 | 33 | M30 |
200 | 7.1 | 12 | 36 | M33 |
250 | 8.8 | 12 | 36 | M33 |
300 | 11.0 | 16 | 36 | M33 |
350 | 12.5 | 16 | 39 | M36 |
400 | 14.2 | 16 | 42 | M39 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 100 | 70 | 40 | 20 |
15 | 105 | 75 | 45 | 20 |
20 | 130 | 90 | 58 | 22 |
25 | 140 | 100 | 68 | 24 |
32 | 155 | 110 | 78 | 24 |
40 | 170 | 125 | 88 | 26 |
50 | 195 | 145 | 102 | 28 |
65 | 220 | 170 | 122 | 30 |
80 | 230 | 180 | 138 | 32 |
100 | 265 | 210 | 162 | 36 |
125 | 315 | 250 | 188 | 40 |
150 | 355 | 290 | 218 | 44 |
200 | 430 | 360 | 285 | 52 |
250 | 505 | 430 | 345 | 60 |
300 | 585 | 500 | 410 | 68 |
350 | 655 | 560 | 465 | 74 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 45 | 6 | 32 | 17.2 |
15 | 45 | 6 | 34 | 21.3 |
20 | 48 | 8 | 42 | 26.9 |
25 | 58 | 8 | 52 | 33.7 |
32 | 60 | 8 | 62 | 42.4 |
40 | 62 | 10 | 70 | 48.3 |
50 | 68 | 10 | 90 | 60.3 |
65 | 76 | 12 | 108 | 76.1 |
80 | 78 | 12 | 120 | 88.9 |
100 | 90 | 12 | 150 | 114.3 |
125 | 105 | 12 | 180 | 139.7 |
150 | 115 | 12 | 210 | 168.3 |
200 | 130 | 16 | 278 | 219.1 |
250 | 157 | 18 | 340 | 273.0 |
300 | 170 | 18 | 400 | 323.9 |
350 | 189 | 20 | 460 | 355.6 |
Size DN | S | n | d | Bolt |
---|---|---|---|---|
10 | 2.0 | 4 | 14 | M12 |
15 | 2.0 | 4 | 14 | M12 |
20 | 2.6 | 4 | 18 | M16 |
25 | 2.6 | 4 | 18 | M16 |
32 | 2.9 | 4 | 22 | M20 |
40 | 2.9 | 4 | 22 | M20 |
50 | 3.2 | 4 | 26 | M24 |
65 | 3.6 | 8 | 26 | M24 |
80 | 4.0 | 8 | 26 | M24 |
100 | 5.0 | 8 | 30 | M27 |
125 | 6.3 | 8 | 33 | M30 |
150 | 7.1 | 12 | 33 | M30 |
200 | 10.0 | 12 | 36 | M33 |
250 | 12.5 | 12 | 39 | M36 |
300 | 14.2 | 16 | 42 | M39 |
350 | 16.0 | 16 | 48 | M45 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 100 | 70 | 40 | 20 |
15 | 105 | 75 | 45 | 20 |
25 | 140 | 100 | 68 | 24 |
40 | 170 | 125 | 88 | 28 |
50 | 195 | 145 | 102 | 30 |
65 | 220 | 170 | 122 | 34 |
80 | 230 | 180 | 138 | 36 |
100 | 265 | 210 | 162 | 40 |
125 | 315 | 250 | 188 | 44 |
150 | 355 | 290 | 218 | 50 |
200 | 430 | 360 | 285 | 60 |
250 | 515 | 430 | 345 | 68 |
300 | 585 | 500 | 410 | 78 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 45 | 6 | 32 | 17.2 |
15 | 45 | 6 | 34 | 21.3 |
25 | 58 | 8 | 52 | 33.7 |
40 | 64 | 10 | 70 | 48.3 |
50 | 75 | 10 | 90 | 60.3 |
65 | 82 | 12 | 108 | 76.1 |
80 | 86 | 12 | 120 | 88.9 |
100 | 100 | 12 | 150 | 114.3 |
125 | 115 | 14 | 180 | 139.7 |
150 | 128 | 14 | 210 | 168.3 |
200 | 140 | 16 | 278 | 219.1 |
250 | 155 | 18 | 340 | 273.0 |
300 | 175 | 18 | 400 | 323.9 |
Size DN | S | n | d | Bolt |
---|---|---|---|---|
10 | 2.0 | 4 | 14 | M12 |
15 | 2.0 | 4 | 14 | M12 |
25 | 2.9 | 4 | 18 | M16 |
40 | 3.6 | 4 | 22 | M20 |
50 | 4.0 | 4 | 26 | M24 |
65 | 5.0 | 8 | 26 | M24 |
80 | 6.3 | 8 | 26 | M24 |
100 | 8.0 | 8 | 30 | M27 |
125 | 10.0 | 8 | 33 | M30 |
150 | 12.5 | 12 | 33 | M30 |
200 | 16.0 | 12 | 36 | M33 |
250 | 20.0 | 12 | 42 | M39 |
300 | 22.2 | 16 | 42 | M39 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 125 | 85 | 40 | - |
15 | 130 | 90 | 45 | 26 |
25 | 150 | 105 | 68 | 28 |
40 | 185 | 135 | 88 | 34 |
50 | 200 | 150 | 102 | 38 |
65 | 230 | 180 | 122 | 42 |
80 | 255 | 200 | 138 | 46 |
100 | 300 | 235 | 162 | 54 |
125 | 340 | 275 | 188 | 60 |
150 | 390 | 320 | 218 | 68 |
200 | 485 | 400 | 285 | 82 |
250 | 585 | 490 | 345 | 100 |
300 | 690 | 590 | 410 | - |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | - | - | - | 17.2 |
15 | 60 | 6 | 48 | 21.3 |
25 | 65 | 8 | 60 | 33.7 |
40 | 80 | 10 | 84 | 48.3 |
50 | 85 | 10 | 95 | 60.3 |
65 | 95 | 12 | 124 | 76.1 |
80 | 102 | 12 | 136 | 88.9 |
100 | 120 | 14 | 164 | 114.3 |
125 | 140 | 16 | 200 | 139.7 |
150 | 160 | 18 | 240 | 168.3 |
200 | 190 | 25 | 305 | 219.1 |
250 | 215 | 30 | 385 | 273.0 |
300 | - | - | - | - |
Size DN | S | n | d | Bolt |
---|---|---|---|---|
10 | - | 4 | 18 | M16 |
15 | 2.6 | 4 | 18 | M16 |
25 | 3.6 | 4 | 22 | M20 |
40 | 5.0 | 4 | 26 | M24 |
50 | 6.3 | 8 | 26 | M24 |
65 | 8.0 | 8 | 26 | M24 |
80 | 11.0 | 8 | 30 | M27 |
100 | 14.2 | 8 | 33 | M30 |
125 | 16.0 | 12 | 33 | M30 |
150 | 17.5 | 12 | 36 | M33 |
200 | 25.0 | 12 | 42 | M39 |
250 | 32.0 | 16 | 48 | M45 |
300 | - | 16 | 52 | M48 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 125 | 85 | 40 | 24 |
15 | 130 | 90 | 45 | 26 |
25 | 160 | 115 | 68 | 34 |
40 | 195 | 145 | 88 | 38 |
50 | 210 | 160 | 102 | 42 |
65 | 255 | 200 | 122 | 51 |
80 | 275 | 220 | 138 | 55 |
100 | 335 | 265 | 162 | 65 |
125 | 380 | 310 | 188 | 75 |
150 | 425 | 350 | 218 | 84 |
200 | 525 | 440 | 285 | 103 |
250 | 640 | 540 | 345 | 125 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 58 | 6 | 44 | 17.2 |
15 | 60 | 6 | 48 | 21.3 |
25 | 78 | 8 | 68 | 33.7 |
40 | 88 | 10 | 92 | 48.3 |
50 | 100 | 10 | 106 | 60.3 |
65 | 120 | 12 | 138 | 76.1 |
80 | 130 | 14 | 156 | 88.9 |
100 | 145 | 16 | 186 | 114.3 |
125 | 175 | 20 | 230 | 139.7 |
150 | 195 | 25 | 265 | 168.3 |
200 | 235 | 30 | 345 | 219.1 |
250 | 300 | 40 | 428 | 273.0 |
Size DN | S | n | d | Bolt |
---|---|---|---|---|
10 | 2.6 | 4 | 18 | M16 |
15 | 3.2 | 4 | 18 | M16 |
25 | 5.0 | 4 | 22 | M20 |
40 | 6.3 | 4 | 26 | M24 |
50 | 8.0 | 8 | 26 | M24 |
65 | 11.0 | 8 | 30 | M27 |
80 | 12.5 | 8 | 30 | M27 |
100 | 16.0 | 8 | 36 | M33 |
125 | 20.0 | 12 | 36 | M33 |
150 | 25.0 | 12 | 39 | M36 |
200 | 30.0 | 16 | 42 | M39 |
250 | 40.0 | 16 | 52 | M48 |
Size DN | D mm | K mm | R mm | C mm |
---|---|---|---|---|
10 | 125 | 85 | 40 | 28 |
15 | 145 | 100 | 45 | 30 |
25 | 180 | 130 | 68 | 38 |
40 | 220 | 165 | 88 | 48 |
50 | 235 | 180 | 102 | 52 |
65 | 290 | 225 | 122 | 64 |
80 | 305 | 240 | 138 | 68 |
100 | 370 | 295 | 162 | 80 |
125 | 415 | 340 | 188 | 92 |
150 | 475 | 390 | 218 | 105 |
200 | 585 | 490 | 285 | 130 |
Size DN | H mm | h mm | X mm | A mm |
---|---|---|---|---|
10 | 65 | 8 | 48 | 17.2 |
15 | 68 | 8 | 56 | 21.3 |
25 | 90 | 10 | 82 | 33.7 |
40 | 110 | 12 | 106 | 48.3 |
50 | 120 | 15 | 120 | 60.3 |
65 | 135 | 18 | 158 | 76.1 |
80 | 150 | 20 | 174 | 88.9 |
100 | 175 | 25 | 216 | 114.3 |
125 | 200 | 30 | 258 | 139.7 |
150 | 225 | 35 | 302 | 168.3 |
200 | 280 | 40 | 388 | 219.1 |
Size DN | S | n | d | Bolt |
---|---|---|---|---|
10 | 3.6 | 4 | 18 | M16 |
15 | 5.0 | 4 | 22 | M20 |
25 | 7.1 | 4 | 26 | M24 |
40 | 10.0 | 4 | 30 | M27 |
50 | 12.5 | 8 | 30 | M27 |
65 | 16.0 | 8 | 33 | M30 |
80 | 17.5 | 8 | 33 | M30 |
100 | 22.2 | 8 | 39 | M36 |
125 | 30.0 | 12 | 39 | M36 |
150 | 35.0 | 12 | 42 | M39 |
200 | 40.0 | 16 | 48 | M45 |
