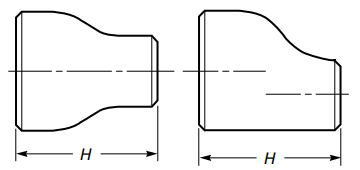

The reducers are often used when the piping designers want to reduce the diameter of a straight run of pipe. There are two styles of standard reducers available in ASME B16.9: Concentric – having a common centerline; Eccentric reducer – having offset centerlines.
NPS | O.D L mm inch | O.D S mm inch | H mm inch |
---|---|---|---|
3/4 x 1/2 | 26.7 1.05 | 21.3 0.84 | 38 1.50 |
3/4 x 3/8 | 26.7 1.05 | 17.3 0.68 | 38 1.50 |
1 x 3/4 | 33.4 1.32 | 26.7 1.05 | 51 2.00 |
1 x 1/2 | 33.4 1.32 | 21.3 0.84 | 51 2.00 |
1-1/4 x 1 | 42.2 1.66 | 33.4 1.32 | 51 2.00 |
1-1/4 x 3/4 | 42.2 1.66 | 26.7 1.05 | 51 2.00 |
1-1/4 x 1/2 | 42.2 1.66 | 21.3 0.84 | 51 2.00 |
1-1/2 x 1-1/4 | 48.3 1.90 | 42.2 1.66 | 64 2.50 |
1-1/2 x 1 | 48.3 1.90 | 33.4 1.32 | 64 2.50 |
1-1/2 x 3/4 | 48.3 1.90 | 26.7 1.05 | 64 2.50 |
1-1/2 x 1/2 | 48.3 1.90 | 21.3 0.84 | 64 2.50 |
2 x 1-1/2 | 60.3 2.38 | 48.3 1.90 | 76 3.00 |
2 x 1-1/4 | 60.3 2.38 | 42.2 1.66 | 76 3.00 |
2 x 1 | 60.3 2.38 | 33.4 1.32 | 76 3.00 |
2 x 3/4 | 60.3 2.38 | 26.7 1.05 | 76 3.00 |
2-1/2 x 2 | 73.0 2.88 | 60.3 2.38 | 89 3.50 |
2-1/2 x 1-1/2 | 73.0 2.88 | 48.3 1.90 | 89 3.50 |
2-1/2 x 1-1/4 | 73.0 2.88 | 42.2 1.66 | 89 3.50 |
2-1/2 x 1 | 73.0 2.88 | 33.4 1.32 | 89 3.50 |
3 x 2-1/2 | 88.9 3.50 | 73.0 2.88 | 89 3.50 |
3 x 2 | 88.9 3.50 | 60.3 2.38 | 89 3.50 |
3 x 1-1/2 | 88.9 3.50 | 48.3 1.90 | 89 3.50 |
3 x 1-1/4 | 88.9 3.50 | 42.2 1.66 | 89 3.50 |
3-1/2 x 3 | 101.6 4.00 | 88.9 3.50 | 102 4.00 |
3-1/2 x 2-1/2 | 101.6 4.00 | 73.0 2.88 | 102 4.00 |
3-1/2 x 2 | 101.6 4.00 | 60.3 2.38 | 102 4.00 |
3-1/2 x 1-1/2 | 101.6 4.00 | 48.3 1.90 | 102 4.00 |
3-1/2 x 1-1/4 | 101.6 4.00 | 42.2 1.66 | 102 4.00 |
4 x 3-1/2 | 114.3 4.50 | 101.6 4.00 | 102 4.00 |
4 x 3 | 114.3 4.50 | 88.9 3.50 | 102 4.00 |
4 x 2-1/2 | 114.3 4.50 | 73.0 2.88 | 102 4.00 |
4 x 2 | 114.3 4.50 | 60.3 2.38 | 102 4.00 |
4 x 1-1/2 | 114.3 4.50 | 48.3 1.90 | 102 4.00 |
5 x 4 | 141.3 5.56 | 114.3 4.50 | 127 5.00 |
5 x 3-1/2 | 141.3 5.56 | 101.6 4.00 | 127 5.00 |
5 x 3 | 141.3 5.56 | 88.9 3.50 | 127 5.00 |
5 x 2-1/2 | 141.3 5.56 | 73.0 2.88 | 127 5.00 |
5 x 2 | 141.3 5.56 | 60.3 2.38 | 127 5.00 |
6 x 5 | 168.3 6.62 | 141.3 5.56 | 140 5.50 |
6 x 4 | 168.3 6.62 | 114.3 4.50 | 140 5.50 |
6 x 3-1/2 | 168.3 6.62 | 101.6 4.00 | 140 5.50 |
6 x 3 | 168.3 6.62 | 88.9 3.50 | 140 5.50 |
6 x 2-1/2 | 168.3 6.62 | 73.0 2.88 | 140 5.50 |
8 x 6 | 219.1 8.62 | 168.3 6.62 | 152 6.00 |
8 x 5 | 219.1 8.62 | 141.3 5.56 | 152 6.00 |
8 x 4 | 219.1 8.62 | 114.3 4.50 | 152 6.00 |
8 x 3-1/2 | 219.1 8.62 | 101.6 4.00 | 152 6.00 |
10 x 8 | 273.0 10.75 | 219.1 8.62 | 178 7.00 |
10 x 6 | 273.0 10.75 | 168.3 6.62 | 178 7.00 |
10 x 5 | 273.0 10.75 | 141.3 5.56 | 178 7.00 |
10 x 4 | 273.0 10.75 | 114.3 4.50 | 178 7.00 |
12 x 10 | 323.8 12.75 | 273.0 10.75 | 203 8.00 |
12 x 8 | 323.8 12.75 | 219.1 8.62 | 203 8.00 |
12 x 6 | 323.8 12.75 | 168.3 6.62 | 203 8.00 |
12 x 5 | 323.8 12.75 | 141.3 5.56 | 203 8.00 |
14 x 12 | 355.6 14.00 | 323.8 12.75 | 330 13.00 |
14 x 10 | 355.6 14.00 | 273.0 10.75 | 330 13.00 |
14 x 8 | 355.6 14.00 | 219.1 8.62 | 330 13.00 |
14 x 6 | 355.6 14.00 | 168.3 6.62 | 330 13.00 |
16 x 14 | 406.4 16.00 | 355.6 14.00 | 356 14.00 |
16 x 12 | 406.4 16.00 | 323.8 12.75 | 356 14.00 |
16 x 10 | 406.4 16.00 | 273.0 10.75 | 356 14.00 |
16 x 8 | 406.4 16.00 | 219.1 8.62 | 356 14.00 |
18 x 16 | 457 18.00 | 406.4 16.00 | 381 15.00 |
18 x 14 | 457 18.00 | 355.6 14.00 | 381 15.00 |
18 x 12 | 457 18.00 | 323.8 12.75 | 381 15.00 |
18 x 10 | 457 18.00 | 273.0 10.75 | 381 15.00 |
20 x 18 | 508 20.00 | 457 18.00 | 508 20.00 |
20 x 16 | 508 20.00 | 406.4 16.00 | 508 20.00 |
20 x 14 | 508 20.00 | 355.6 14.00 | 508 20.00 |
20 x 12 | 508 20.00 | 323.8 12.75 | 508 20.00 |
22 x 20 | 559 22.00 | 508 20.00 | 508 20.00 |
22 x 18 | 559 22.00 | 457 18.00 | 508 20.00 |
22 x 16 | 559 22.00 | 406.4 16.00 | 508 20.00 |
22 x 14 | 559 22.00 | 355.6 14.00 | 508 20.00 |
24 x 22 | 610 24.00 | 559 22.00 | 508 20.00 |
24 x 20 | 610 24.00 | 508 20.00 | 508 20.00 |
24 x 18 | 610 24.00 | 457 18.00 | 508 20.00 |
24 x 16 | 610 24.00 | 406.4 16.00 | 508 20.00 |
26 x 24 | 660 26.00 | 610 24.00 | 610 24.00 |
26 x 22 | 660 26.00 | 559 22.00 | 610 24.00 |
26 x 20 | 660 26.00 | 508 20.00 | 610 24.00 |
26 x 18 | 660 26.00 | 457 18.00 | 610 24.00 |
28 x 26 | 711 28.00 | 660 26.00 | 610 24.00 |
28 x 24 | 711 28.00 | 610 24.00 | 610 24.00 |
28 x 20 | 711 28.00 | 508 20.00 | 610 24.00 |
28 x 18 | 711 28.00 | 457 18.00 | 610 24.00 |
30 x 28 | 762 30.00 | 711 28.00 | 610 24.00 |
30 x 26 | 762 30.00 | 660 26.00 | 610 24.00 |
30 x 24 | 762 30.00 | 610 24.00 | 610 24.00 |
30 x 20 | 762 30.00 | 508 20.00 | 610 24.00 |
32 x 30 | 813 32.00 | 762 30.00 | 610 24.00 |
32 x 28 | 813 32.00 | 711 28.00 | 610 24.00 |
32 x 26 | 813 32.00 | 660 26.00 | 610 24.00 |
32 x 24 | 813 32.00 | 610 24.00 | 610 24.00 |
34 x 32 | 864 34.00 | 813 32.00 | 610 24.00 |
34 x 30 | 864 34.00 | 762 30.00 | 610 24.00 |
34 x 26 | 864 34.00 | 660 26.00 | 610 24.00 |
34 x 24 | 864 34.00 | 610 24.00 | 610 24.00 |
36 x 34 | 914 36.00 | 864 34.00 | 610 24.00 |
36 x 32 | 914 36.00 | 813 32.00 | 610 24.00 |
36 x 30 | 914 36.00 | 762 30.00 | 610 24.00 |
36 x 26 | 914 36.00 | 660 26.00 | 610 24.00 |
36 x 24 | 914 36.00 | 610 24.00 | 610 24.00 |
38 x 36 | 965 38.00 | 914 36.00 | 610 24.00 |
38 x 34 | 965 38.00 | 864 34.00 | 610 24.00 |
38 x 32 | 965 38.00 | 813 32.00 | 610 24.00 |
38 x 30 | 965 38.00 | 762 30.00 | 610 24.00 |
38 x 28 | 965 38.00 | 711 28.00 | 610 24.00 |
38 x 26 | 965 38.00 | 660 26.00 | 610 24.00 |
40 x 38 | 1016 40.00 | 965 38.00 | 610 24.00 |
40 x 36 | 1016 40.00 | 914 36.00 | 610 24.00 |
40 x 34 | 1016 40.00 | 864 34.00 | 610 24.00 |
40 x 32 | 1016 40.00 | 813 32.00 | 610 24.00 |
40 x 30 | 1016 40.00 | 762 30.00 | 610 24.00 |
42 x 40 | 1067 42.00 | 1016 40.00 | 610 24.00 |
42 x 38 | 1067 42.00 | 965 38.00 | 610 24.00 |
42 x 36 | 1067 42.00 | 914 36.00 | 610 24.00 |
42 x 34 | 1067 42.00 | 864 34.00 | 610 24.00 |
42 x 32 | 1067 42.00 | 813 32.00 | 610 24.00 |
42 x 30 | 1067 42.00 | 711 28.00 | 610 24.00 |
44 x 42 | 1118 44.00 | 1067 42.00 | 610 24.00 |
44 x 40 | 1118 44.00 | 1016 40.00 | 610 24.00 |
44 x 38 | 1118 44.00 | 965 38.00 | 610 24.00 |
44 x 36 | 1118 44.00 | 914 36.00 | 610 24.00 |
46 x 44 | 1168 46.00 | 1118 44.00 | 711 28.00 |
46 x 42 | 1168 46.00 | 1067 42.00 | 711 28.00 |
46 x 40 | 1168 46.00 | 1016 40.00 | 711 28.00 |
46 x 38 | 1168 46.00 | 965 38.00 | 711 28.00 |
48 x 46 | 1219 48.00 | 1168 46.00 | 711 28.00 |
48 x 44 | 1219 48.00 | 1118 44.00 | 711 28.00 |
48 x 42 | 1219 48.00 | 1067 42.00 | 711 28.00 |
48 x 40 | 1219 48.00 | 1016 40.00 | 711 28.00 |
*NPS: Nominal Pipe Size; O.D L: Outside Diameter at Bevel, large end; O.D S: Outside Diameter at Bevel, small end; H: Center-to-End.
