The reducing tee or the reducing cross has same function as that of a straight tee or a straight cross, respectively, except that the branch outlet is a smaller pipe size.
NPS | O.D for Run mm inch | O.D for Outlet mm inch |
---|---|---|
1/2 x 1/2 x 3/8 | 21.3 0.84 | 17.3 0.68 |
1/2 x 1/2 x 1/4 | 21.3 0.84 | 13.7 0.54 |
3/4 x 3/4 x 1/2 | 26.7 1.05 | 21.3 0.84 |
3/4 x 3/4 x 3/8 | 26.7 1.05 | 17.3 0.68 |
1 x 1 x 3/4 | 33.4 1.32 | 26.7 1.05 |
1 x 1 x 1/2 | 33.4 1.32 | 21.3 0.84 |
1-1/4 x 1-1/4 x 1 | 42.2 1.66 | 33.4 1.32 |
1-1/4 x 1-1/4 x 3/4 | 42.2 1.66 | 26.7 1.05 |
1-1/4 x 1-1/4 x 1/2 | 42.2 1.66 | 21.3 0.84 |
1-1/2 x 1-1/2 x 1-1/4 | 48.3 1.90 | 42.2 1.66 |
1-1/2 x 1-1/2 x 1 | 48.3 1.90 | 33.4 1.32 |
1-1/2 x 1-1/2 x 3/4 | 48.3 1.90 | 26.7 1.05 |
1-1/2 x 1-1/2 x 1/2 | 48.3 1.90 | 21.3 0.84 |
2 x 2 x 1-1/2 | 60.3 2.38 | 48.3 1.90 |
2 x 2 x 1-1/4 | 60.3 2.38 | 42.2 1.66 |
2 x 2 x 1 | 60.3 2.38 | 33.4 1.32 |
2 x 2 x 3/4 | 60.3 2.38 | 26.7 1.05 |
2-1/2 x 2-1/2 x 2 | 73.0 2.88 | 60.3 2.38 |
2-1/2 x 2-1/2 x 1-1/2 | 73.0 2.88 | 48.3 1.90 |
2-1/2 x 2-1/2 x 1-1/4 | 73.0 2.88 | 42.2 1.66 |
2-1/2 x 2-1/2 x 1 | 73.0 2.88 | 33.4 1.32 |
3 x 3 x 2-1/2 | 88.9 3.50 | 73.0 2.88 |
3 x 3 x 2 | 88.9 3.50 | 60.3 2.38 |
3 x 3 x 1-1/2 | 88.9 3.50 | 48.3 1.90 |
3 x 3 x 1-1/4 | 88.9 3.50 | 42.2 1.66 |
3-1/2 x 3-1/2 x 3 | 101.6 4.00 | 88.9 3.50 |
3-1/2 x 3-1/2 x 2-1/2 | 101.6 4.00 | 73.0 2.88 |
3-1/2 x 3-1/2 x 2 | 101.6 4.00 | 60.3 2.38 |
3-1/2 x 3-1/2 x 1-1/2 | 101.6 4.00 | 48.3 1.90 |
4 x 4 x 3-1/2 | 114.3 4.50 | 101.6 4.00 |
4 x 4 x 3 | 114.3 4.50 | 88.9 3.50 |
4 x 4 x 2-1/2 | 114.3 4.50 | 73.0 2.88 |
4 x 4 x 2 | 114.3 4.50 | 60.3 2.38 |
4 x 4 x 1-1/2 | 114.3 4.50 | 48.3 1.90 |
5 x 5 x 4 | 141.3 5.56 | 114.3 4.50 |
5 x 5 x 3-1/2 | 141.3 5.56 | 101.6 4.00 |
5 x 5 x 3 | 141.3 5.56 | 88.9 3.50 |
5 x 5 x 2-1/2 | 141.3 5.56 | 73.0 2.88 |
5 x 5 x 2 | 141.3 5.56 | 60.3 2.38 |
6 x 6 x 5 | 168.3 6.62 | 141.3 5.56 |
6 x 6 x 4 | 168.3 6.62 | 114.3 4.50 |
6 x 6 x 3-1/2 | 168.3 6.62 | 101.6 4.00 |
6 x 6 x 3 | 168.3 6.62 | 88.9 3.50 |
6 x 6 x 2-1/2 | 168.3 6.62 | 73.0 2.88 |
8 x 8 x 6 | 219.1 8.62 | 168.3 6.62 |
8 x 8 x 5 | 219.1 8.62 | 141.3 5.56 |
8 x 8 x 4 | 219.1 8.62 | 114.3 4.50 |
8 x 8 x 3-1/2 | 219.1 8.62 | 101.6 4.00 |
10 x 10 x 8 | 273.0 10.75 | 219.1 8.62 |
10 x 10 x 6 | 273.0 10.75 | 168.3 6.62 |
10 x 10 x 5 | 273.0 10.75 | 141.3 5.56 |
10 x 10 x 4 | 273.0 10.75 | 114.3 4.50 |
12 x 12 x 10 | 323.8 12.75 | 273.0 10.75 |
12 x 12 x 8 | 323.8 12.75 | 219.1 8.62 |
12 x 12 x 6 | 323.8 12.75 | 168.3 6.62 |
12 x 12 x 5 | 323.8 12.75 | 141.3 5.56 |
14 x 14 x 12 | 355.6 14.00 | 323.8 12.75 |
14 x 14 x 10 | 355.6 14.00 | 273.0 10.75 |
14 x 14 x 8 | 355.6 14.00 | 219.1 8.62 |
14 x 14 x 6 | 355.6 14.00 | 168.3 6.62 |
16 x 16 x 14 | 406.4 16.00 | 355.6 14.00 |
16 x 16 x 12 | 406.4 16.00 | 323.8 12.75 |
16 x 16 x 10 | 406.4 16.00 | 273.0 10.75 |
16 x 16 x 8 | 406.4 16.00 | 219.1 8.62 |
16 x 16 x 6 | 406.4 16.00 | 168.3 6.62 |
18 x 18 x 16 | 457 18.00 | 406.4 16.00 |
18 x 18 x 14 | 457 18.00 | 355.6 14.00 |
18 x 18 x 12 | 457 18.00 | 323.8 12.75 |
18 x 18 x 10 | 457 18.00 | 273.0 10.75 |
18 x 18 x 8 | 457 18.00 | 219.1 8.62 |
20 x 20 x 18 | 508 20.00 | 457.0 18.00 |
20 x 20 x 16 | 508 20.00 | 406.4 16.00 |
20 x 20 x 14 | 508 20.00 | 355.6 14.00 |
20 x 20 x 12 | 508 20.00 | 323.8 12.75 |
20 x 20 x 10 | 508 20.00 | 273.0 10.75 |
20 x 20 x 8 | 508 20.00 | 219.1 8.62 |
22 x 22 x 20 | 559 22.00 | 508 20.00 |
22 x 22 x 18 | 559 22.00 | 457.0 18.00 |
22 x 22 x 16 | 559 22.00 | 406.4 16.00 |
22 x 22 x 14 | 559 22.00 | 355.6 14.00 |
22 x 22 x 12 | 559 22.00 | 323.8 12.75 |
22 x 22 x 10 | 559 22.00 | 273.0 10.75 |
24 x 24 x 22 | 610 24.00 | 559.0 22.00 |
24 x 24 x 20 | 610 24.00 | 508 20.00 |
24 x 24 x 18 | 610 24.00 | 457.0 18.00 |
24 x 24 x 16 | 610 24.00 | 406.4 16.00 |
24 x 24 x 14 | 610 24.00 | 355.6 14.00 |
24 x 24 x 12 | 610 24.00 | 323.8 12.75 |
24 x 24 x 10 | 610 24.00 | 273.0 10.75 |
26 x 26 x 24 | 660 26.00 | 610.0 24.00 |
26 x 26 x 22 | 660 26.00 | 559.0 22.00 |
26 x 26 x 20 | 660 26.00 | 508 20.00 |
26 x 26 x 18 | 660 26.00 | 457.0 18.00 |
26 x 26 x 16 | 660 26.00 | 406.4 16.00 |
26 x 26 x 14 | 660 26.00 | 355.6 14.00 |
26 x 26 x 12 | 660 26.00 | 323.8 12.75 |
28 x 28 x 26 | 711 28.00 | 660.0 26.00 |
28 x 28 x 24 | 711 28.00 | 610.0 24.00 |
28 x 28 x 22 | 711 28.00 | 559.0 22.00 |
28 x 28 x 20 | 711 28.00 | 508 20.00 |
28 x 28 x 18 | 711 28.00 | 457.0 18.00 |
28 x 28 x 16 | 711 28.00 | 406.4 16.00 |
28 x 28 x 14 | 711 28.00 | 355.6 14.00 |
28 x 28 x 12 | 711 28.00 | 323.8 12.75 |
30 x 30 x 28 | 762 30.00 | 711.0 28.00 |
30 x 30 x 26 | 762 30.00 | 660.0 26.00 |
30 x 30 x 24 | 762 30.00 | 610.0 24.00 |
30 x 30 x 22 | 762 30.00 | 559.0 22.00 |
30 x 30 x 20 | 762 30.00 | 508 20.00 |
30 x 30 x 18 | 762 30.00 | 457.0 18.00 |
30 x 30 x 16 | 762 30.00 | 406.4 16.00 |
30 x 30 x 14 | 762 30.00 | 355.6 14.00 |
30 x 30 x 12 | 762 30.00 | 323.8 12.75 |
30 x 30 x 10 | 762 30.00 | 273.0 10.75 |
32 x 32 x 30 | 813 32.00 | 762.0 30.00 |
32 x 32 x 28 | 813 32.00 | 711.0 28.00 |
32 x 32 x 26 | 813 32.00 | 660.0 26.00 |
32 x 32 x 24 | 813 32.00 | 610.0 24.00 |
32 x 32 x 22 | 813 32.00 | 559.0 22.00 |
32 x 32 x 20 | 813 32.00 | 508 20.00 |
32 x 32 x 18 | 813 32.00 | 457.0 18.00 |
32 x 32 x 16 | 813 32.00 | 406.4 16.00 |
32 x 32 x 14 | 813 32.00 | 355.6 14.00 |
34 x 34 x 32 | 864 34.00 | 813.0 32.00 |
34 x 34 x 30 | 864 34.00 | 762.0 30.00 |
34 x 34 x 28 | 864 34.00 | 711.0 28.00 |
34 x 34 x 26 | 864 34.00 | 660.0 26.00 |
34 x 34 x 24 | 864 34.00 | 610.0 24.00 |
34 x 34 x 22 | 864 34.00 | 559.0 22.00 |
34 x 34 x 20 | 864 34.00 | 508 20.00 |
34 x 34 x 18 | 864 34.00 | 457.0 18.00 |
34 x 34 x 16 | 864 34.00 | 406.4 16.00 |
36 x 36 x 34 | 914 36.00 | 864.0 34.00 |
36 x 36 x 32 | 914 36.00 | 813.0 32.00 |
36 x 36 x 30 | 914 36.00 | 762.0 30.00 |
36 x 36 x 28 | 914 36.00 | 711.0 28.00 |
36 x 36 x 26 | 914 36.00 | 660.0 26.00 |
36 x 36 x 24 | 914 36.00 | 610.0 24.00 |
36 x 36 x 22 | 914 36.00 | 559.0 22.00 |
36 x 36 x 20 | 914 36.00 | 508 20.00 |
36 x 36 x 18 | 914 36.00 | 457.0 18.00 |
36 x 36 x 16 | 914 36.00 | 406.4 16.00 |
38 x 38 x 36 | 965 38.00 | 914.0 36.00 |
38 x 38 x 34 | 965 38.00 | 864.0 34.00 |
38 x 38 x 32 | 965 38.00 | 813.0 32.00 |
38 x 38 x 30 | 965 38.00 | 762.0 30.00 |
38 x 38 x 28 | 965 38.00 | 711.0 28.00 |
38 x 38 x 26 | 965 38.00 | 660.0 26.00 |
38 x 38 x 24 | 965 38.00 | 610.0 24.00 |
38 x 38 x 22 | 965 38.00 | 559.0 22.00 |
38 x 38 x 20 | 965 38.00 | 508 20.00 |
38 x 38 x 18 | 965 38.00 | 457.0 18.00 |
40 x 40 x 38 | 1016 40.00 | 965.0 38.00 |
40 x 40 x 36 | 1016 40.00 | 914.0 36.00 |
40 x 40 x 34 | 1016 40.00 | 864.0 34.00 |
40 x 40 x 32 | 1016 40.00 | 813.0 32.00 |
40 x 40 x 30 | 1016 40.00 | 762.0 30.00 |
40 x 40 x 28 | 1016 40.00 | 711.0 28.00 |
40 x 40 x 26 | 1016 40.00 | 660.0 26.00 |
40 x 40 x 24 | 1016 40.00 | 610.0 24.00 |
40 x 40 x 22 | 1016 40.00 | 559.0 22.00 |
40 x 40 x 20 | 1016 40.00 | 508 20.00 |
40 x 40 x 18 | 1016 40.00 | 457.0 18.00 |
42 x 42 x 40 | 1067 42.00 | 1016.0 40.00 |
42 x 42 x 38 | 1067 42.00 | 965.0 38.00 |
42 x 42 x 36 | 1067 42.00 | 914.0 36.00 |
42 x 42 x 34 | 1067 42.00 | 864.0 34.00 |
42 x 42 x 32 | 1067 42.00 | 813.0 32.00 |
42 x 42 x 30 | 1067 42.00 | 762.0 30.00 |
42 x 42 x 28 | 1067 42.00 | 711.0 28.00 |
42 x 42 x 26 | 1067 42.00 | 660.0 26.00 |
42 x 42 x 24 | 1067 42.00 | 610.0 24.00 |
42 x 42 x 22 | 1067 42.00 | 559.0 22.00 |
42 x 42 x 20 | 1067 42.00 | 508 20.00 |
42 x 42 x 18 | 1067 42.00 | 457.0 18.00 |
42 x 42 x 16 | 1067 42.00 | 406.4 16.00 |
44 x 44 x 42 | 1118 44.00 | 1067.0 42.00 |
44 x 44 x 40 | 1118 44.00 | 1016.0 40.00 |
44 x 44 x 38 | 1118 44.00 | 965.0 38.00 |
44 x 44 x 36 | 1118 44.00 | 914.0 36.00 |
44 x 44 x 34 | 1118 44.00 | 864.0 34.00 |
44 x 44 x 32 | 1118 44.00 | 813.0 32.00 |
44 x 44 x 30 | 1118 44.00 | 762.0 30.00 |
44 x 44 x 28 | 1118 44.00 | 711.0 28.00 |
44 x 44 x 26 | 1118 44.00 | 660.0 26.00 |
44 x 44 x 24 | 1118 44.00 | 610.0 24.00 |
44 x 44 x 22 | 1118 44.00 | 559.0 22.00 |
44 x 44 x 20 | 1118 44.00 | 508 20.00 |
46 x 46 x 44 | 1168 46.00 | 1118.0 44.00 |
46 x 46 x 42 | 1168 46.00 | 1067.0 42.00 |
46 x 46 x 40 | 1168 46.00 | 1016.0 40.00 |
46 x 46 x 38 | 1168 46.00 | 965.0 38.00 |
46 x 46 x 36 | 1168 46.00 | 914.0 36.00 |
46 x 46 x 34 | 1168 46.00 | 864.0 34.00 |
46 x 46 x 32 | 1168 46.00 | 813.0 32.00 |
46 x 46 x 30 | 1168 46.00 | 762.0 30.00 |
46 x 46 x 28 | 1168 46.00 | 711.0 28.00 |
46 x 46 x 26 | 1168 46.00 | 660.0 26.00 |
46 x 46 x 24 | 1168 46.00 | 610.0 24.00 |
46 x 46 x 22 | 1168 46.00 | 559.0 22.00 |
48 x 48 x 46 | 1219 48.00 | 1168.0 46.00 |
48 x 48 x 44 | 1219 48.00 | 1118.0 44.00 |
48 x 48 x 42 | 1219 48.00 | 1067.0 42.00 |
48 x 48 x 40 | 1219 48.00 | 1016.0 40.00 |
48 x 48 x 38 | 1219 48.00 | 965.0 38.00 |
48 x 48 x 36 | 1219 48.00 | 914.0 36.00 |
48 x 48 x 34 | 1219 48.00 | 864.0 34.00 |
48 x 48 x 32 | 1219 48.00 | 813.0 32.00 |
48 x 48 x 30 | 1219 48.00 | 762.0 30.00 |
48 x 48 x 28 | 1219 48.00 | 711.0 28.00 |
48 x 48 x 26 | 1219 48.00 | 660.0 26.00 |
48 x 48 x 24 | 1219 48.00 | 610.0 24.00 |
48 x 48 x 22 | 1219 48.00 | 559.0 22.00 |
*NPS: Nominal Pipe Size; O.D: Outside Diameter at Bevel.

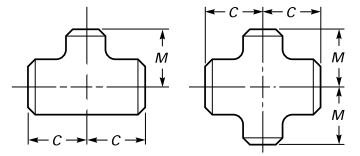

NPS | C mm inch | M mm inch |
---|---|---|
1/2 x 1/2 x 3/8 | 25 1.00 | 25 1.00 |
1/2 x 1/2 x 1/4 | 25 1.00 | 25 1.00 |
3/4 x 3/4 x 1/2 | 29 1.12 | 29 1.12 |
3/4 x 3/4 x 3/8 | 29 1.12 | 29 1.12 |
1 x 1 x 3/4 | 38 1.50 | 38 1.50 |
1 x 1 x 1/2 | 38 1.50 | 38 1.50 |
1-1/4 x 1-1/4 x 1 | 48 1.88 | 48 1.88 |
1-1/4 x 1-1/4 x 3/4 | 48 1.88 | 48 1.88 |
1-1/4 x 1-1/4 x 1/2 | 48 1.88 | 48 1.88 |
1-1/2 x 1-1/2 x 1-1/4 | 57 2.25 | 57 2.25 |
1-1/2 x 1-1/2 x 1 | 57 2.25 | 57 2.25 |
1-1/2 x 1-1/2 x 3/4 | 57 2.25 | 57 2.25 |
1-1/2 x 1-1/2 x 1/2 | 57 2.25 | 57 2.25 |
2 x 2 x 1-1/2 | 64 2.50 | 60 2.38 |
2 x 2 x 1-1/4 | 64 2.50 | 57 2.25 |
2 x 2 x 1 | 64 2.50 | 51 2.00 |
2 x 2 x 3/4 | 64 2.50 | 44 1.75 |
2-1/2 x 2-1/2 x 2 | 76 3.00 | 70 2.75 |
2-1/2 x 2-1/2 x 1-1/2 | 76 3.00 | 67 2.62 |
2-1/2 x 2-1/2 x 1-1/4 | 76 3.00 | 64 2.50 |
2-1/2 x 2-1/2 x 1 | 76 3.00 | 57 2.25 |
3 x 3 x 2-1/2 | 86 3.38 | 83 3.25 |
3 x 3 x 2 | 86 3.38 | 76 3.00 |
3 x 3 x 1-1/2 | 86 3.38 | 73 2.88 |
3 x 3 x 1-1/4 | 86 3.38 | 70 2.75 |
3-1/2 x 3-1/2 x 3 | 95 3.75 | 92 3.62 |
3-1/2 x 3-1/2 x 2-1/2 | 95 3.75 | 89 3.50 |
3-1/2 x 3-1/2 x 2 | 95 3.75 | 83 3.25 |
3-1/2 x 3-1/2 x 1-1/2 | 95 3.75 | 79 3.12 |
4 x 4 x 3-1/2 | 105 4.12 | 102 4.00 |
4 x 4 x 3 | 105 4.12 | 98 3.88 |
4 x 4 x 2-1/2 | 105 4.12 | 95 3.75 |
4 x 4 x 2 | 105 4.12 | 89 3.50 |
4 x 4 x 1-1/2 | 105 4.12 | 86 3.38 |
5 x 5 x 4 | 124 4.88 | 117 4.62 |
5 x 5 x 3-1/2 | 124 4.88 | 114 4.50 |
5 x 5 x 3 | 124 4.88 | 111 4.38 |
5 x 5 x 2-1/2 | 124 4.88 | 108 4.25 |
5 x 5 x 2 | 124 4.88 | 105 4.12 |
6 x 6 x 5 | 143 5.62 | 137 5.38 |
6 x 6 x 4 | 143 5.62 | 130 5.12 |
6 x 6 x 3-1/2 | 143 5.62 | 127 5.00 |
6 x 6 x 3 | 143 5.62 | 124 4.88 |
6 x 6 x 2-1/2 | 143 5.62 | 121 4.75 |
8 x 8 x 6 | 178 7.00 | 168 6.62 |
8 x 8 x 5 | 178 7.00 | 162 6.38 |
8 x 8 x 4 | 178 7.00 | 156 6.12 |
8 x 8 x 3-1/2 | 178 7.00 | 152 6.00 |
10 x 10 x 8 | 216 8.50 | 203 8.00 |
10 x 10 x 6 | 216 8.50 | 194 7.62 |
10 x 10 x 5 | 216 8.50 | 191 7.50 |
10 x 10 x 4 | 216 8.50 | 184 7.25 |
12 x 12 x 10 | 254 10.00 | 241 9.50 |
12 x 12 x 8 | 254 10.00 | 229 9.00 |
12 x 12 x 6 | 254 10.00 | 219 8.62 |
12 x 12 x 5 | 254 10.00 | 216 8.50 |
14 x 14 x 12 | 279 11.00 | 270 10.62 |
14 x 14 x 10 | 279 11.00 | 257 10.12 |
14 x 14 x 8 | 279 11.00 | 248 9.75 |
14 x 14 x 6 | 279 11.00 | 238 9.38 |
16 x 16 x 14 | 305 12.00 | 305 12.00 |
16 x 16 x 12 | 305 12.00 | 295 11.62 |
16 x 16 x 10 | 305 12.00 | 283 11.12 |
16 x 16 x 8 | 305 12.00 | 273 10.75 |
16 x 16 x 6 | 305 12.00 | 264 10.38 |
18 x 18 x 16 | 343 13.50 | 330 13.00 |
18 x 18 x 14 | 343 13.50 | 330 13.00 |
18 x 18 x 12 | 343 13.50 | 321 12.62 |
18 x 18 x 10 | 343 13.50 | 308 12.12 |
18 x 18 x 8 | 343 13.50 | 298 11.75 |
20 x 20 x 18 | 381 15.00 | 368 14.50 |
20 x 20 x 16 | 381 15.00 | 356 14.00 |
20 x 20 x 14 | 381 15.00 | 356 14.00 |
20 x 20 x 12 | 381 15.00 | 346 13.62 |
20 x 20 x 10 | 381 15.00 | 333 13.12 |
20 x 20 x 8 | 381 15.00 | 324 12.75 |
22 x 22 x 20 | 419 16.50 | 406 16.00 |
22 x 22 x 18 | 419 16.50 | 394 15.50 |
22 x 22 x 16 | 419 16.50 | 381 15.00 |
22 x 22 x 14 | 419 16.50 | 381 15.00 |
22 x 22 x 12 | 419 16.50 | 371 14.62 |
22 x 22 x 10 | 419 16.50 | 359 14.12 |
24 x 24 x 22 | 432 17.00 | 432 17.00 |
24 x 24 x 20 | 432 17.00 | 432 17.00 |
24 x 24 x 18 | 432 17.00 | 419 16.50 |
24 x 24 x 16 | 432 17.00 | 406 16.00 |
24 x 24 x 14 | 432 17.00 | 406 16.00 |
24 x 24 x 12 | 432 17.00 | 397 15.62 |
24 x 24 x 10 | 432 17.00 | 384 15.12 |
26 x 26 x 24 | 495 19.50 | 483 19.00 |
26 x 26 x 22 | 495 19.50 | 470 18.50 |
26 x 26 x 20 | 495 19.50 | 457 18.00 |
26 x 26 x 18 | 495 19.50 | 444 17.50 |
26 x 26 x 16 | 495 19.50 | 432 17.00 |
26 x 26 x 14 | 495 19.50 | 432 17.00 |
26 x 26 x 12 | 495 19.50 | 422 16.62 |
28 x 28 x 26 | 521 20.50 | 521 20.50 |
28 x 28 x 24 | 521 20.50 | 508 20.00 |
28 x 28 x 22 | 521 20.50 | 495 19.50 |
28 x 28 x 20 | 521 20.50 | 483 19.00 |
28 x 28 x 18 | 521 20.50 | 470 18.50 |
28 x 28 x 16 | 521 20.50 | 457 18.00 |
28 x 28 x 14 | 521 20.50 | 457 18.00 |
28 x 28 x 12 | 521 20.50 | 448 17.62 |
30 x 30 x 28 | 559 22.00 | 546 21.50 |
30 x 30 x 26 | 559 22.00 | 546 21.50 |
30 x 30 x 24 | 559 22.00 | 533 21.00 |
30 x 30 x 22 | 559 22.00 | 521 20.50 |
30 x 30 x 20 | 559 22.00 | 508 20.00 |
30 x 30 x 18 | 559 22.00 | 495 19.50 |
30 x 30 x 16 | 559 22.00 | 483 19.00 |
30 x 30 x 14 | 559 22.00 | 483 19.00 |
30 x 30 x 12 | 559 22.00 | 473 18.62 |
30 x 30 x 10 | 559 22.00 | 460 18.12 |
32 x 32 x 30 | 597 23.50 | 584 23.00 |
32 x 32 x 28 | 597 23.50 | 572 22.50 |
32 x 32 x 26 | 597 23.50 | 572 22.50 |
32 x 32 x 24 | 597 23.50 | 559 22.00 |
32 x 32 x 22 | 597 23.50 | 546 21.50 |
32 x 32 x 20 | 597 23.50 | 533 21.00 |
32 x 32 x 18 | 597 23.50 | 521 20.50 |
32 x 32 x 16 | 597 23.50 | 508 20.00 |
32 x 32 x 14 | 597 23.50 | 508 20.00 |
34 x 34 x 32 | 635 25.00 | 622 24.50 |
34 x 34 x 30 | 635 25.00 | 610 24.00 |
34 x 34 x 28 | 635 25.00 | 597 23.50 |
34 x 34 x 26 | 635 25.00 | 597 23.50 |
34 x 34 x 24 | 635 25.00 | 584 23.00 |
34 x 34 x 22 | 635 25.00 | 572 22.50 |
34 x 34 x 20 | 635 25.00 | 559 22.00 |
34 x 34 x 18 | 635 25.00 | 546 21.50 |
34 x 34 x 16 | 635 25.00 | 533 21.00 |
36 x 36 x 34 | 673 26.50 | 660 26.00 |
36 x 36 x 32 | 673 26.50 | 648 25.50 |
36 x 36 x 30 | 673 26.50 | 635 25.00 |
36 x 36 x 28 | 673 26.50 | 622 24.50 |
36 x 36 x 26 | 673 26.50 | 622 24.50 |
36 x 36 x 24 | 673 26.50 | 610 24.00 |
36 x 36 x 22 | 673 26.50 | 597 23.50 |
36 x 36 x 20 | 673 26.50 | 584 23.00 |
36 x 36 x 18 | 673 26.50 | 572 22.50 |
36 x 36 x 16 | 673 26.50 | 559 22.00 |
38 x 38 x 36 | 711 28.00 | 711 28.00 |
38 x 38 x 34 | 711 28.00 | 698 27.50 |
38 x 38 x 32 | 711 28.00 | 686 27.00 |
38 x 38 x 30 | 711 28.00 | 673 26.50 |
38 x 38 x 28 | 711 28.00 | 648 25.50 |
38 x 38 x 26 | 711 28.00 | 648 25.50 |
38 x 38 x 24 | 711 28.00 | 635 25.00 |
38 x 38 x 22 | 711 28.00 | 622 24.50 |
38 x 38 x 20 | 711 28.00 | 610 24.00 |
38 x 38 x 18 | 711 28.00 | 597 23.50 |
40 x 40 x 38 | 749 29.50 | 749 29.50 |
40 x 40 x 36 | 749 29.50 | 737 29.00 |
40 x 40 x 34 | 749 29.50 | 724 28.50 |
40 x 40 x 32 | 749 29.50 | 711 28.00 |
40 x 40 x 30 | 749 29.50 | 698 27.50 |
40 x 40 x 28 | 749 29.50 | 673 26.50 |
40 x 40 x 26 | 749 29.50 | 673 26.50 |
40 x 40 x 24 | 749 29.50 | 660 26.00 |
40 x 40 x 22 | 749 29.50 | 648 25.50 |
40 x 40 x 20 | 749 29.50 | 635 25.00 |
40 x 40 x 18 | 749 29.50 | 622 24.50 |
42 x 42 x 40 | 762 30.00 | 711 28.00 |
42 x 42 x 38 | 762 30.00 | 711 28.00 |
42 x 42 x 36 | 762 30.00 | 711 28.00 |
42 x 42 x 34 | 762 30.00 | 711 28.00 |
42 x 42 x 32 | 762 30.00 | 711 28.00 |
42 x 42 x 30 | 762 30.00 | 711 28.00 |
42 x 42 x 28 | 762 30.00 | 698 27.50 |
42 x 42 x 26 | 762 30.00 | 698 27.50 |
42 x 42 x 24 | 762 30.00 | 660 26.00 |
42 x 42 x 22 | 762 30.00 | 660 26.00 |
42 x 42 x 20 | 762 30.00 | 660 26.00 |
42 x 42 x 18 | 762 30.00 | 648 25.50 |
42 x 42 x 16 | 762 30.00 | 635 25.00 |
44 x 44 x 42 | 813 32.00 | 762 30.00 |
44 x 44 x 40 | 813 32.00 | 749 29.50 |
44 x 44 x 38 | 813 32.00 | 737 29.00 |
44 x 44 x 36 | 813 32.00 | 724 28.50 |
44 x 44 x 34 | 813 32.00 | 724 28.50 |
44 x 44 x 32 | 813 32.00 | 711 28.00 |
44 x 44 x 30 | 813 32.00 | 711 28.00 |
44 x 44 x 28 | 813 32.00 | 698 27.50 |
44 x 44 x 26 | 813 32.00 | 698 27.50 |
44 x 44 x 24 | 813 32.00 | 698 27.50 |
44 x 44 x 22 | 813 32.00 | 686 27.00 |
44 x 44 x 20 | 813 32.00 | 686 27.00 |
46 x 46 x 44 | 851 33.50 | 800 31.50 |
46 x 46 x 42 | 851 33.50 | 787 31.00 |
46 x 46 x 40 | 851 33.50 | 775 30.50 |
46 x 46 x 38 | 851 33.50 | 762 30.00 |
46 x 46 x 36 | 851 33.50 | 762 30.00 |
46 x 46 x 34 | 851 33.50 | 749 29.50 |
46 x 46 x 32 | 851 33.50 | 749 29.50 |
46 x 46 x 30 | 851 33.50 | 737 29.00 |
46 x 46 x 28 | 851 33.50 | 737 29.00 |
46 x 46 x 26 | 851 33.50 | 737 29.00 |
46 x 46 x 24 | 851 33.50 | 724 28.50 |
46 x 46 x 22 | 851 33.50 | 724 28.50 |
48 x 48 x 46 | 889 35.00 | 838 33.00 |
48 x 48 x 44 | 889 35.00 | 838 33.00 |
48 x 48 x 42 | 889 35.00 | 813 32.00 |
48 x 48 x 40 | 889 35.00 | 813 32.00 |
48 x 48 x 38 | 889 35.00 | 813 32.00 |
48 x 48 x 36 | 889 35.00 | 787 31.00 |
48 x 48 x 34 | 889 35.00 | 787 31.00 |
48 x 48 x 32 | 889 35.00 | 787 31.00 |
48 x 48 x 30 | 889 35.00 | 762 30.00 |
48 x 48 x 28 | 889 35.00 | 762 30.00 |
48 x 48 x 26 | 889 35.00 | 762 30.00 |
48 x 48 x 24 | 889 35.00 | 737 29.00 |
48 x 48 x 22 | 889 35.00 | 737 29.00 |
*NPS: Nominal Pipe Size; C: Center-to-End, Run; M: Center-to-End, Outlet.
ASME B16.9 Butt Welding Fittings | ||
---|---|---|
Elbow L/R | Reducing Elbow | Return L/R |
Elbow S/R | Return S/R | 3D Elbow |
Tee & Cross | Reducing Tee | Reducing Cross |
Stub End | Cap | Reducer |
End Bevel | Tolerance | Wall Thickness |
*Click to view dimensions of other ASME B16.9 standard fittings.
